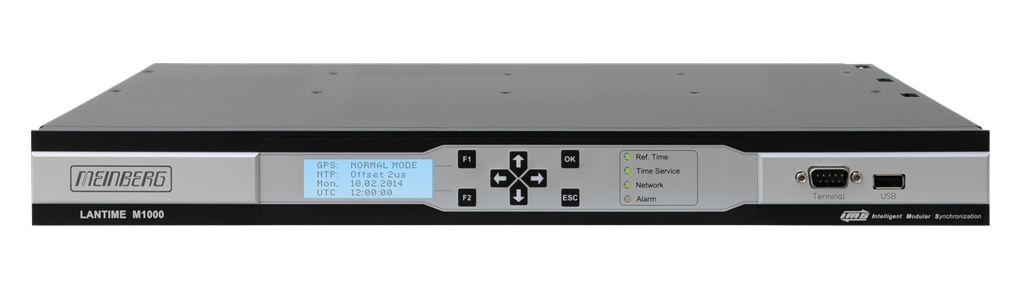

Versatile and Modular Solution for Time and Frequency Synchronization Applications in 1U housing
The compact 1RU form factor, the hotplugging and hotswapping capabilities and the large selection of different modules for input/output sync signals, network synchronization interfaces and clock modules with different GNSS/radio receiver and oscillator options offer an unmatched reliability, scalability and flexibility. As every Intelligent Modular Synchronization (IMS) system, the M1000S can play almost any role in your synchronization infrastructure: Edge Grandmaster Clock, PRC, PRTC, Secure Sync Gateway, Protocol/Sync Signal Translator and many more.
The 1U chassis has two power supply slots, optional two clock module slots, a CPU slot and four (three in case of a second reference clock) slots for additional input and output modules. Adding a second clock module and a second power supply transforms the IMS - M1000S into a fully redundant solution. Both, wide range AC and a 20-60 V DC power supply model can be mixed and matched as required.
