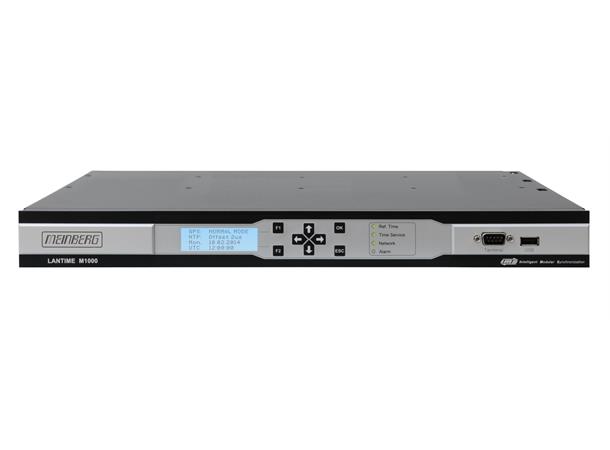

Meinberg LANTIME M1000 19" rack Modular chassis 1U Meinberg LANTIME M1000 19" rack Modular chassis 1U

Meinberg LANTIME M1000 19" rack

Modular chassis 1U

Varenr: IMS-M1000S
Alt. varenr: 27545

Versatile and Modular Solution for Time and Frequency Synchronization Application in 1U housing

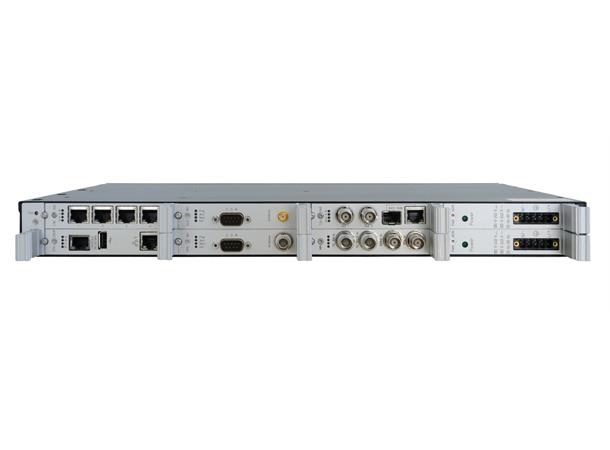

The 1U chassis has two power supply slots, optional two clock module slots, a CPU slot and four (three in case of a second reference clock) slots for additional input and output modules. Adding a second clock module and a second power supply transforms the IMS - M1000 into a fully redundant solution. Both, wide range AC and a 20-72 VDC power supply model can be mixed and matched as required.



  • Selectable Reference Sources:
    • GPS: Satellite receiver for the Global Positioning System
    • GLN: Combined GPS/GLONASS satellite receiver (L1 frequency band), can also be used for mobile applications
    • PZF: DCF77 correlation receiver for middle europe
    • MRS: (GPS, PPS, 10MHz, NTP): Multi Reference Source - several reference sources, adjustable following priority of signal
  • Optimized space usage
  • Synchronization of NTP and SNTP compatible clients
  • Web based status and configuration interface (Demo) and console based graphical configuration utility
  • IMS - Intelligent Modular System platform
  • Up to 4 PTP (IEEE 1588-2008) modules
  • Redundant power and receiver option (eg GPS / GLONASS combination)
  • Hot Plug
  • Arbitrary combinations of modules
  • Our LANTIME time server can be provided with a large number of additional output options: IRIG Time Code, frequency synthesizer and programmable pulse outputs are only a few of the many expansion options for your NTP server.
  • Up to 16 additional LAN ports
