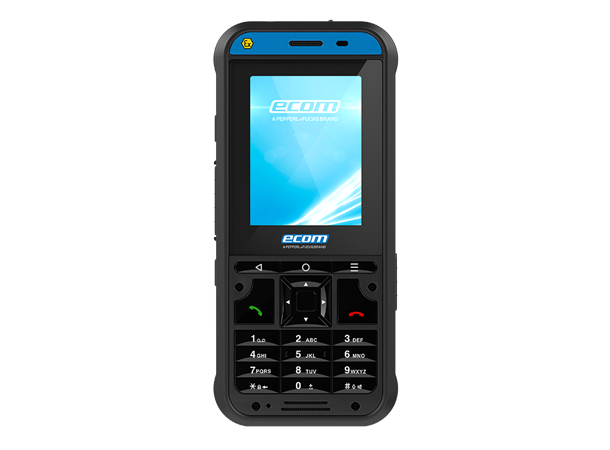

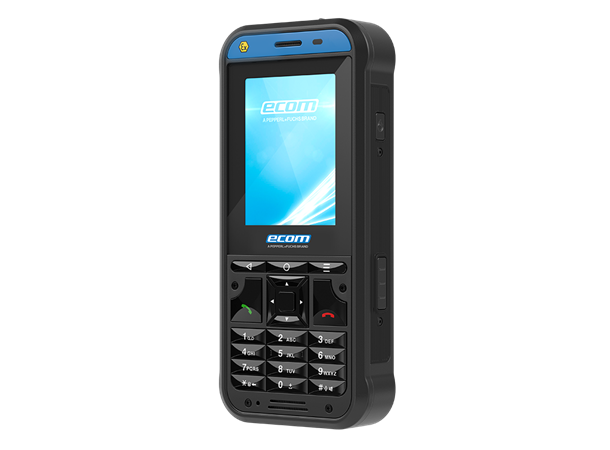

Ex-Handy 10 DZ1

Zone 1/21 and Div 1

Varenr: 480985-100019
24739 24739 24739

The Pepperl+Fuchs brand Ecom introduces Ex-Handy 10 - the new generation of intrinsically safe 4G/LTE feature phones for a broad variety of applications - from pure communication to Push-to-Talk or lone worker protection.

The Ex-Handy 10 with Android operating system, is the ideal companion for innovative Industry 4.0 applications in hazardous areas. With IP68 and Gorilla® Glass you can operate the Ex-Handy 10 in the roughest of environments. With a 5-year product lifecycle and global Ex-certifications to meet all requirements, it provides a low risk investment to the user.

With customer-specific configurations and customizations, it also handles the most demanding of situations.


Technical Data
Operating SystemAndroid™ 9 | Google Play
ProcessorQualcomm Snapdragon MSM8909 platform
MemoryRAM: 2 GB
Internal data memory: 16 GB
With external microSD up to 128 GB
Display6,6 cm / (2,6") capacitive multi-touch screen made of extreme shock and scratch resistant Gorilla glass
Support of glove and wet mode
High Visibility in direct sunlight
PortsWater-proof magnetic USB 2.0 connector
3.5 mm jack connection with special ecom mounting solution
Dimensions148 x 67 x 24 mm
WeightApprox. 330 g
Dedicated keysProgrammable key / Alarm / Power / Multifunction / Volume / Hardware buttons for Android features
Connectivity4G / LTE -standard (SIM unlocked and free); Nano SIM
WiFi 802.11 a/b/g/n/e/k/r/h; 2.4 Ghz and 5 Ghz support
Bluetooth® 4.2 incl. BLE (Bluetooth Low Energy)
GPS / A-GPS / Glonass / Beidou
Camera8 MP rear camera with auto focus (optional) and LED flash with torchlight function
Power4400 mAh
Frequency bandsCellular frequency bands:
4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B20, B21, B25, B26, B28, B66, B71
4G LTE TDD: B38, B39, B40, B41 (2540 Mhz to 2640 Mhz)
3G UMTS: 850 / 900 / 1700 / 1900 / 2100 MHz
2G GSM: 850 / 900 / 1800 / 1900 MHz
ProtectionIP68, MIL-STD-810G


Ex® Certification



II 2G Ex ib op is IIC T4 Gb IP64

II 2D Ex ib op is IIIC T120°C Db

Ambient temperature: -20 °C = Ta = +60 °C




Ex ib op is IIC T4 Gb IP64

Ex ib op is IIIC T120°C Db

Ambient temperature: -20 °C = Ta = +60 °C
