T35 Compression column load cell, 30t OIML C4, IP68, IP69K, St.steel

T35 Compression column load cell, 30t

OIML C4, IP68, IP69K, St.steel

Varenr: T35-30T

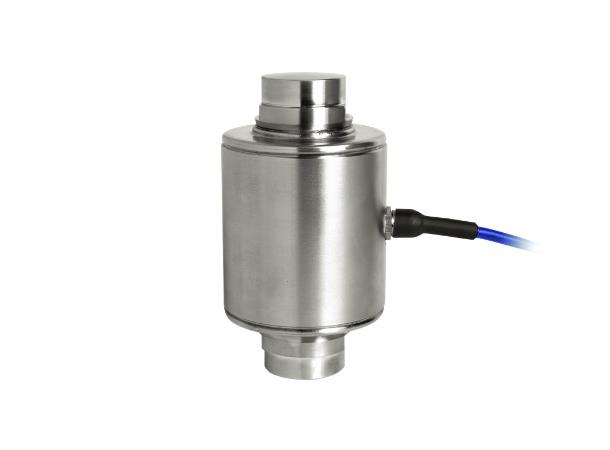

The T35 is an analogue compression column (canister) stainless steel load cell with a self-centering rocker column design for use in legal-for-trade applications.

It is especially suitable for use in truck scales / weighbridges thanks to its OIML C4 (4000 divisions) approval, robust design, proven anti-rotation mechanism and rodent resistant (anti-rat) polyurethane cable.

With a fully welded and hermetically sealed construction, protected to IP68 & IP69K, and integral lighting protection as standard, it is very simple to install.

To simplify the commissioning of a truck scale or weighbridge, the T35 load cell has optimized pre-corner adjustment, calibrated in mV/V/Ohm by output current matching.  This significantly reduces the time required to calibrate a truck scale or weighbridge.

The associated LA35 mounting accessory provides 2 off zinc plated mounting cups (the lower one having 2 off anti-rotation faces).

Key features:
Capacities 30,000kg and 40,000kg
Stainless steel construction
Calibrated in mV/V/Ohm
Legal-for-trade approval to OIML R60 C4 (4000 divisions)
Fully welded and hermetically sealed stainless steel load cell, protected to IP68 & IP69K
Simple installation with self-centering design
In-built surge arrestors (GDTs) for lightning protection as standard
Special polyurethane cable which has high toughness and resistance to cuts, chemicals, UV radiation and rodent (rat) bites, etc.
Digital version, T35D, also available
Parylene coating for the load cell when used in extremely harsh / corrosive environments
High temperature version upto 150 °C (continuous temperature) available
