Product description

Description

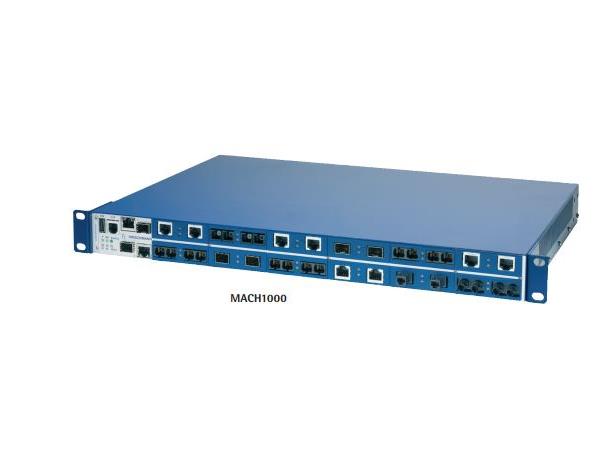

Industrial managed Fast/Gigabit Ethernet Switch, 19" rack mount, fanless Design, according to IEEE 802.3, store-and-forward-switching

Port type and quantity

Gigabit-Ethernet ports in total: 2; 2 x Combo ports (10/100/1000BASE-TX RJ 45 plus FE/GE-SFP-slot; Fast-Ethernet ports in total: 16 x ports in total; 4 x Twisted

Pair, 12 x Multimode LC;

Order No.

MAR1030-CCBBBBBBBBBBBBTTTT99999999SGGHPHH08.0.

More Interfaces

Power supply/signaling contact Power supply 1: power supply 3-pin spring clip, signal contact 2-pin spring clip; Power supply 2: power supply 3-pin spring clip, signal contact 2-pin spring clip

V.24 interface 1 x RJ11 socket

USB interface 1 x to connect auto-configuration adapter ACA21-USB

Network size - length of cable

Twisted pair (TP) 0 m ... 100 m

Network size - cascadibility

Line - / star topology Any

Ring structure (HIPER-Ring) quantity switches 100 switches

Power requirements

Operating voltage

Power supply 1: 120/250 VDC, 110/230 VAC; Power supply 2: 120/250 VDC, 110/230 VAC

Current consumption at 230 V AC

Power supply 1 and 2: 150 mA (35W) max, if all ports are equipped with fiber

Industrial Profiles

EtherNet/IP and PROFINET (2.2 PDEV, GSDML Stand-alone generator, automatic device exchange) profiles included, configuration and diagnostic via automation

software tools like e.g. STEP7, or Control Logix IEC61850 protocol (MMS Server, Switch Model)

Time synchronisation

SNTP Server, PTP / IEEE 1588, realtime clock with energy buffer

Ambient conditions

Operating temperature

0 ºC ... 60 ºC

Storage/transport temperature

 -40 ºC ... 85 ºC

Relative humidity (non-condensing)

 10 % ... 95 %

Protective paint on PCB

 No

Mechanical construction

Dimensions

(W x H x D) 445 mm x 44 mm x 308 mm

Mounting

19" control cabinet

Weight appr.

5 kg

Protection class

IP30

Mechanical stability

IEC 60068-2-27 shock 15 g, 11 ms duration, 18 schocks

IEC 60068-2-6 vibration 1 mm, 2 Hz - 13.2 Hz, 90 min.; 0.7g, 13,2 Hz - 100 Hz, 90 min.; 3.5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min.; 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD) 8 kV contact discharge, 15 kV air discharge

EN 61000-4-3 electromagnetic field 35 V/m (80 - 2700 MHz); 1kHz, 80% AM

EN 61000-4-4 fast transients (burst) 4 kV power line, 4 kV data line

EN 61000-4-5 surge voltage Power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line IEEE1613: power line 5kV (line/earth)

EN 61000-4-6 conducted immunity 2,5 kV (line/earth), 1 kV (line/line) (1MHz)

EN 61000-4-16 mains frequency voltage 30V, 50Hz continous; 300V, 50Hz 1s

EMC emitted immunity

FCC CFR47 Part 15 FCC CFR47 Part 15 Class A

EN 55022 EN 55022 Class A

Approvals

Safety of industrial control equipment cUL 508 (pending)

Hazardous locations cUL 1604 Class1 Div 2 (pending)

Germanischer Lloyd Germanischer Lloyd (in preparation)

Substation IEC 61850-3; IEEE 1613

Transportation EN 50121-4, NEMA TS
