ATEX & IECEx Approved Hazardous Area Telephone
Ex II 2 GD & Ex II 2 G ATEX Certified telephone for Gas and Dust
Zone 1 & 2, Zone 21 & 22 Compliant models
CE (R&TTE Directive 1999/5/EC and ATEX Product Directive 94/9/EC)
InMetro Approved for Gas
Fully compliant with TBR21 (ES203 021) / TBR38
Full keypad with 3 programmable memory buttons, or CB variant
Optional removable headset*
90dB sounder (adjustable)
Beacon / external sounder actuator
Robust and weather resistant: IP66
Extended cord length available
Auteldac 5 has 2 M20 cable entry gland positions.
Enclosure: Carbon loaded glass-filled polyester (colour: black)
Surface resistance: <109 O
Handset: Conductively coated polycarbonate handset with coiled cord or stainless steel spiral cord. Noise cancelling options. Extended cord lengths available.
Keypad: Weathersealed tactile digital keypad
Hookswitch: Electronic with no mechanical moving parts
Weather Ingress protection: Up to IP66
Ringing: Shrill warble tone >90 dBA @ 1 metre typical. Internal volume control.
Power Supply: Drawn from telephone line
Integral Ring Detector: Contact closure following the ringing cadence, rated at 230Vac, 3A r.m.s.
Isolated hookswitch sensor: Additional contact rated at 230Vac, 150mA r.m.s.
Parallel Terminal Block: Duplicated line terminals allows connection to a parallel device without an additional junction box.
Time Out: Enforces a fixed call maximum time limit to 7 minutes from lifting of the handset. User selectable ON or OFF
Dialling system: LD or DTMF (switchable)
Recall Button: Internally switchable from Earth Loop Recall (600ms pulse) and Timed Break Recall 100ms, 250ms or 600ms.
Certified Operating Temperature: -20° C up to +60° C
Relative Humidity: Up to 95% (non-condensing)
Weight: approx. 3.2 kg
Headset: The headset cord is approximately 820mm long and can extend to approximately 2m. The headset extension lead will allow the operator to use the headset over 6 metres away from the telephone.
Auteldac 5CB blk 320mm n/c, curly cord 212-02-5020-400

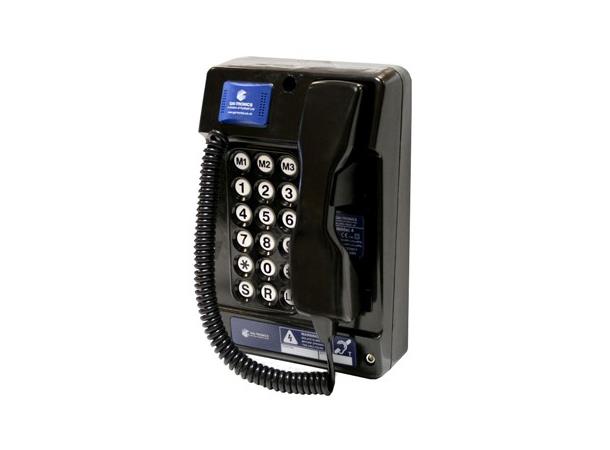

Auteldac 5, 18btn blk 320mm n/c, curly cord 212-02-5028-400
Auteldac 5, CB+ headset socket*, curly cord 212-02-5020-410
Auteldac 5, 18btn blk 320mm n/c + headset
socket*, curly cord 212-02-5028-410
Auteldac 5 Stainless Steel Cord
Auteldac 5, CB blk 745mm n/c, steel cord 212-02-5020-500
Auteldac 5, 18btn blk 745mm n/c, steel cord 212-02-5028-500
Auteldac 5, CB + headset socket*, steel cord 212-02-5020-510
Auteldac 5, 18btn blk 745mm n/c + headset
socket*, steel cord 212-02-5028-510
Headset & Plug for Auteldac 5
*Headset & Plug 100-02-0598-001
Extension cord for Headset 610-35-2036-001
