Aaronia HyperLOG PRO series

2GHz - 40GHz

Varenr: HyperLOG PRO

Our HyperLOG PRO measurement-antennas offer a very flat gain response over the full frequency range under test which enables them to be the perfect measurement-tools for precision pre-compliance test or site survey.

Because of the flat gain response the LPDA offers a very simple power (dBm) to field strength (V/m or W/m²) conversion if connected to a test receiver or spectrum analyzer. The small beam width of the test antenna offers a high directionality to easily pinpoint the radiating RF source under test.

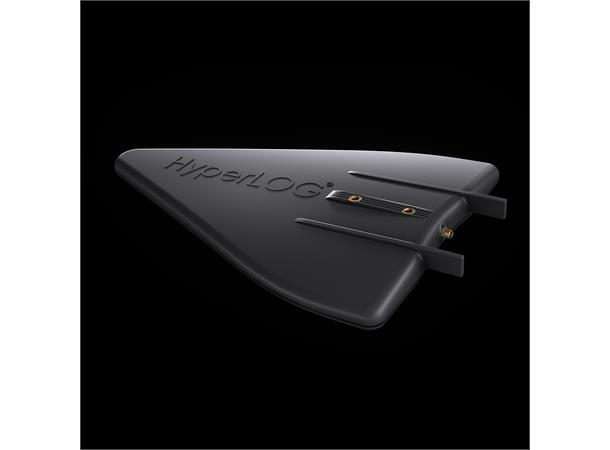

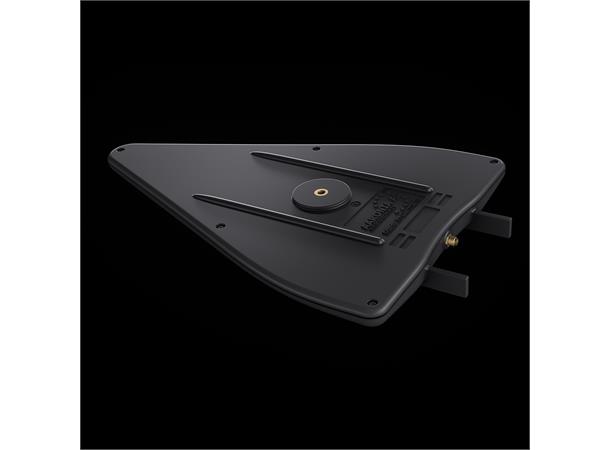

Every HyperLOG PRO EMC Test-Antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality GOLD COATING, a high-tech antenna-case (radome) which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and an SMA connector (18GHz version) with twist protection.

Exhaustive Calibration data
All Aaronia compliance antennas include a complete high resolution (10MHz steps!) calibration data set with up to 533 calibration points (Excel file, download link provided). This offers the ability to make a very accurate EMC measurement with any spectrum analyzer.

Made in Germany
All Aaronia precompliance antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 2 years warranty for all EMC antennas.
