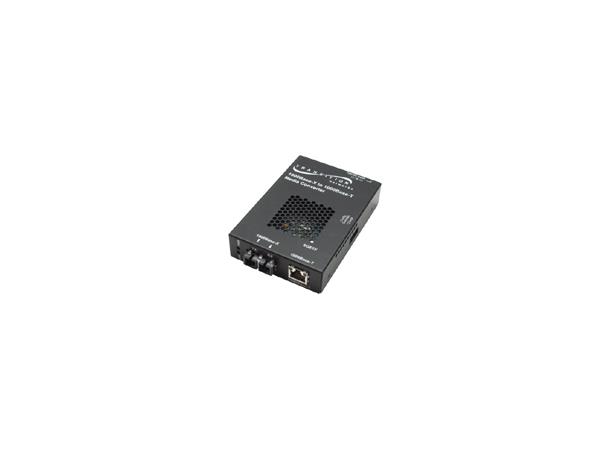

Transition Gigabit media konverter 1000BaseTX til SFP (tom).
Standards IEEE Std. 802.3ab and IEEE Std. 802.3z
Fiber Optic Connector Specs
6-position Switch SW1: Remote Fiber Fault Detect (Down=Enabled)
SW2: Symmetric Pause
SW3: Asymmetric Pause
SW4: Transparent Link Pass Through (UP=Enabled)
SW5: Fiber Auto-Negotiation (Down=Enabled)
SW6: Loopback (Down=Enabled)
Status LEDs PWR (Power): Steady green LED indicates connection to external AC power
RXF (Fiber receive): Flashing LED indicates reception of data on fiber link
LKF (Fiber link): Steady LED indicates fiber link connection
RXC (Copper receive): Flashing LED indicates reception of data on copper link
LKC (Copper link): Steady LED indicates copper link connection
Dimensions Width: 3.25" [82 mm]
Depth: 4.8" [122 mm]
Height: 1.0" [25 mm]
Power External AC/DC required; 12V DC, 1.5A; unregulated; standard
Environment 0 – 50° C operating; 5% – 95% humidity non-condensing; 0 – 10,000 feet altitude
Shipping Weight 2 lbs. [0.90 kg]
Safety Compliance Wall Mount Power Supply: UL Listed, C-UL Listed (Canada)
Regulatory Compliance FCC Class A, CISPR22/EN55022 Class A, EN55024, EN61000, CE Mark
Warranty Lifetime
