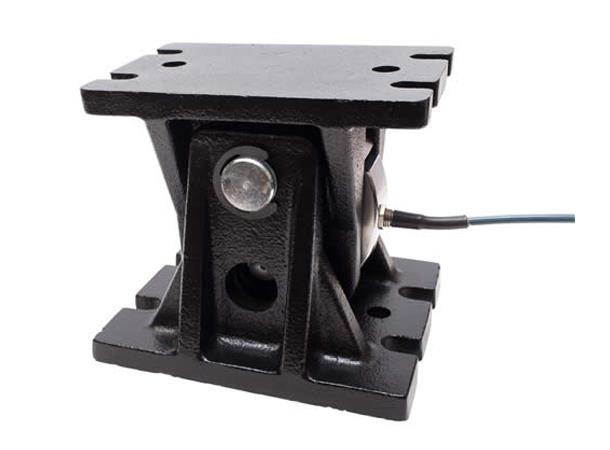

A unique load cell/mounting accessory combination for applications requiring high accuracy when there is significant movement present, for example the weighing of tanks with mixers or agitators, catalyst vessels, axle weighers and weigh-in motion (WIM) systems.

It comprises an OIML approved stainless steel S-type load cell with a robust ‘pendulum’ mounting accessory.  Although the weighing assembly is loaded in compression, the load cell is mounted in a ‘pendulum’ and operated in tension.  Therefore the direction of load is always directed through the central axis of the load cell, even when the module is subjected to significant movement or misalignment – maintaining high weighing accuracy at all times.

Approved to OIML R60 C3 (3000 divisions) and protected to IP68/IP69K, the stainless steel load cell is ideal for environments requiring wash-down with high pressure, high temperature water such as the food and pharmaceutical industries.  With approval to both ATEX and IECEx, the load cell is also perfect for use in hazardous areas.  Its special certification allows use in ATEX dust zones 20, 21, 22 and gas zone 2 with no need for safety barriers – which saves our customers a large sum of money.

The ‘pendulum’ mounting accessory is available in painted alloy steel or stainless steel, covering a range of different applications.

For use in aggressive environments where stress corrosion or acid attack is a potential problem, a special Parylene coating can be specified as an option.  In high temperature environments, an optional variant for use up to +150°C is available.

Ask a question about this trusted, world leading product.

Key features:
Capacities 2,000kg; 5,000kg; 10,000kg and 20,000kg
OIML R60 C3 approved up to 10,000kg (3000 divisions)
Simple installation
Self-damping design
Integral lift-off prevention
Fully welded and hermetically sealed stainless steel load cell, protected to IP68/IP69K
ATEX approved version for all zones (no need for safety barriers in dust zones 20, 21, 22 or gas zone 2)
IECEx approved version for all zones
Options: Parylene coating for the load cell when used in extremely harsh environments, high temperature and amplified output (4-20mA) versions
