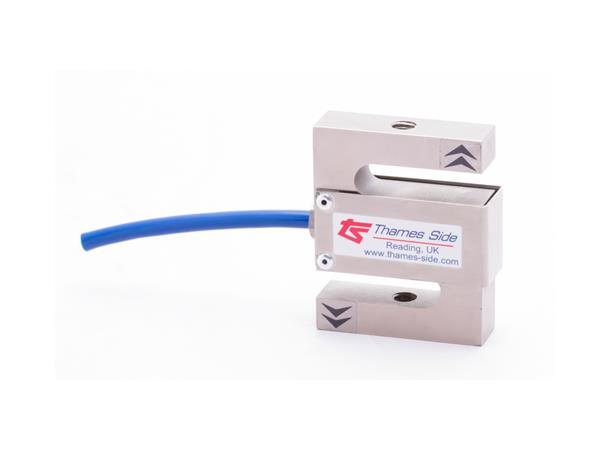

The T61 S-type (or S-beam) tension load cell is manufactured from high quality alloy steel and sealed to IP67. Its low cost and capacity range of 50kg-1000kg make this model a versatile solution to a range of different applications. The durable polyurethane cable has a high resistance to impacts/cuts, chemicals and UV radiation.
Although normally used in tension, it can be used in compression or in a bi-directional (static) manner with suitable adapters in the right application. It is not suitable for dynamic use through zero load.
For ease of attachment to the structure being weighed, for example a hanging hopper, a range of tension rod end bearings is available.
Capacity range: 50kg-1000kg
High quality nickel plated alloy steel, corrosion resistant
Fully potted and sealed to IP67
3 mV/V sensitivity and 4-wire connection
Can be used in tension or compression (not for through-zero dynamic use)
Optional high temperature version for use up to +150 °C
3 year warranty
Option: zinc plated steel rod end bearings for attachment
