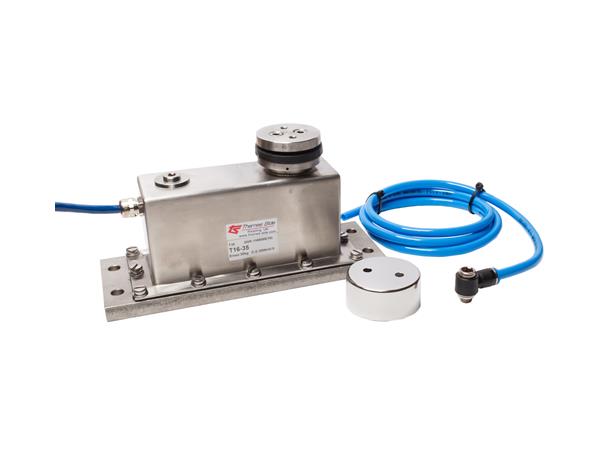

T16 Fluid damped load cell 5kg OIML C4, IP68, St.steel

T16 Fluid damped load cell 5kg

OIML C4, IP68, St.steel

Varenr: T16-5KG

The T16 single point fluid damped platform load cell is a reliable, simple, high precision and low cost solution for dynamic weighing applications, even with off-centre loading.  The internal fluid damps the vibrations of the sensing element, offering faster settling times, faster weighing speeds and increased load cell life when compared with an undamped load cell.  It is therefore ideal for high speed checkweighing, form-fill-seal (FFS) and filling machines.

The internal aluminium sensor is surrounded by a grade 316 stainless steel housing that is protected to IP68 if using the provided venting kit – allowing for wash-down in harsh environments that require regular cleaning.  Its maximum operating temperature is a high +70 °C.

The excellent durability of this load cell comes from its integrated on-centre overload protection, with a dual stop providing bi-directional protection from upwards and downwards overload forces.

The load cell is approved to OIML C4 (4000 divisions) as standard.  The durable, screened polyurethane cable provides a higher level of resistance to chemicals, UV radiation, cuts and damage than a PVC cable.

Key features:
Capacity range: 5-35kg
High accuracy and fast settling time with off-centre dynamic loads
Bi-directional overload protection
Load cell complies with OIML R60 regulations up to 4000 divisions (C4) for scales according to EN 45501
Viscous damped aluminium alloy load cell; 316 stainless steel housing
IP68 protection if using venting kit
500mm x 500mm, max. platform size (with load cell placed centrally under platform)
Durable polyurethane cable, ideal for wash-down environments
2 year warranty
