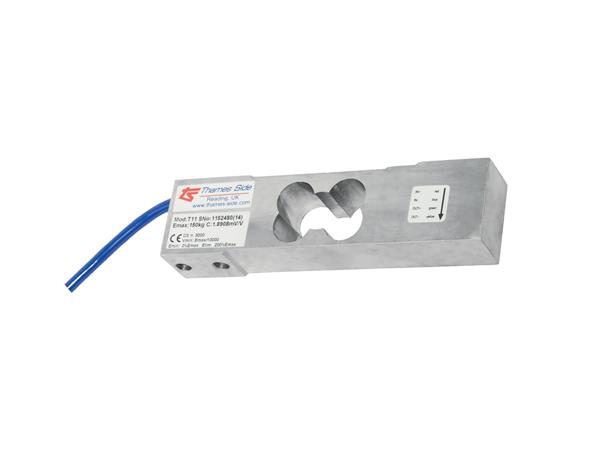

The T11 single point load cell is manufactured from high quality nickel plated alloy steel and its design provides for high accuracy weight measurement, even with off-centre loads.
It is suitable for platforms of size 500mm x 500mm maximum (with the load cell installed centrally under the platform) and carries OIML C3 approval (3000 divisions) from 15kg to 75kg capacities. Potted and silicone sealed to provide IP66 protection, it also features a polyurethane cable as standard. Polyurethane has a high resistance to UV radiation, temperature changes and impacts/cuts compared with PVC cable.
Capacity range: 15-150kg
High quality nickel plated alloy steel, corrosion resistant
OIML C3 approval (15kg to 75kg capacities)
Fully potted and sealed to IP66
500 x 500mm max. platform size (with load cell placed centrally under platform)
