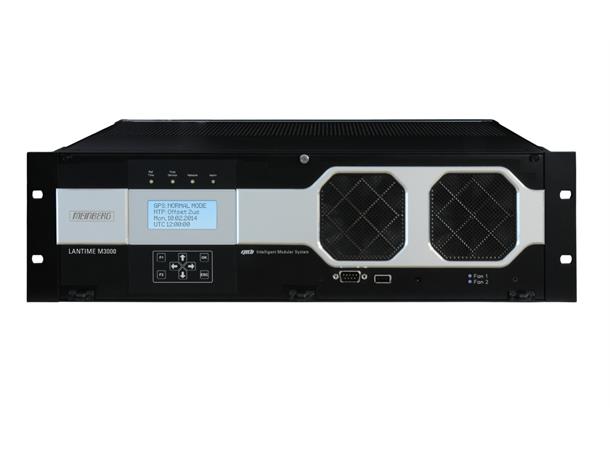

Meinberg LANTIME M3000S  w/o display Modular chassis - without modules Meinberg LANTIME M3000S  w/o display Modular chassis - without modules

Meinberg LANTIME M3000S w/o display

Modular chassis - without modules

Varenr: IMS-M3000S

Basic version without CPU, display, Cooling module, SPT and without power supply 110-240 V AC/110-240 V DC


Versatile and Modular Solution for Time and Frequency Synchronization Application
The new LANTIME M3000 is a field-upgradable and extremely flexible system that covers your synchronization needs - today and in the future.

The M3000 chassis has four power supply slots, two clock module slots, a seamless switchover card slot, a CPU slot and ten slots for additional input and output modules. Adding a second clock module at any time together with an RSC switch module transforms the M3000 into a fully redundant solution. Up to four power supplies can be used, offering protection against the failure of one or more power sources or PSU failures. Both wide range AC and a 18-72VDC power supply model can be mixed and matched as required.

Selectable Reference Sources:
  • GPS: Satellite receiver for the Global Positioning System
  • GLN: Combined GPS/GLONASS satellite receiver (L1 frequency band), can also be used for mobile applications
  • MRS: (GPS, PPS, 10MHz, NTP): Multi Reference Source - several reference sources, adjustable following priority of signal

Optimized space usage
Synchronization of NTP and SNTP compatible clients
Web based status and configuration interface (Demo) and console based graphical configuration utility
IMS - Intelligent Modular System platform
Up to 10 PTP (IEEE 1588-2008) modules
Redundant power and receiver option (eg GPS)
Hot Plug
Arbitrary combinations of modules
Our LANTIME time server can be provided with a large number of additional output options: IRIG Time Code, frequency synthesizer and programmable pulse outputs are only a few of the many expansion options for your NTP server.
Up to 40 additional LAN ports
