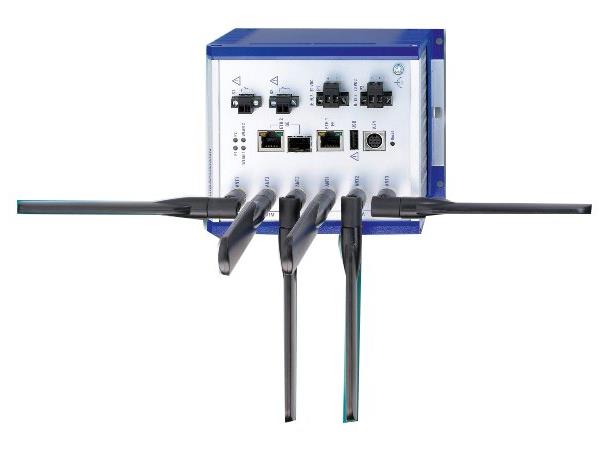

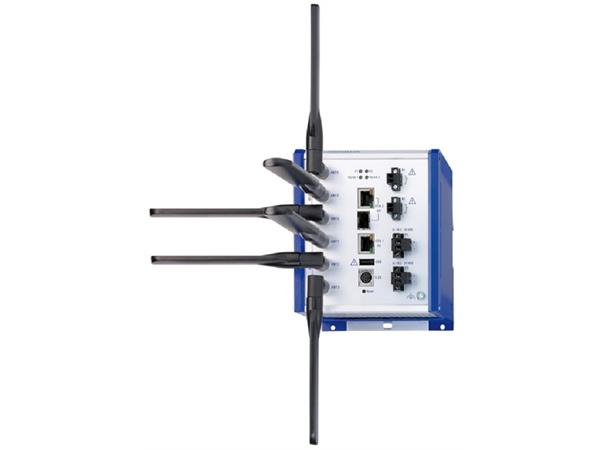

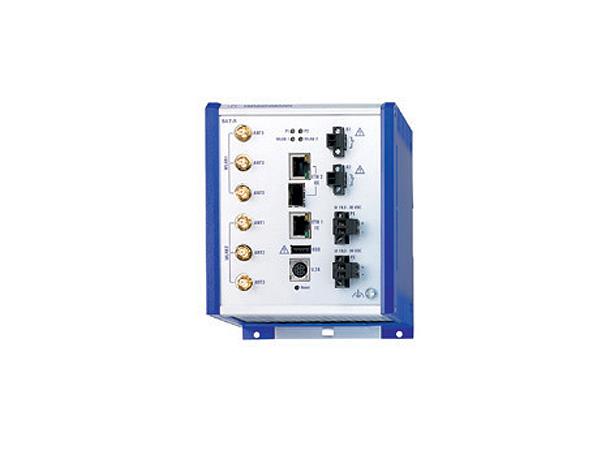

Hirschmann OpenBAT-R trådløs AP/klient


Varenr: BAT-REUW99ACC99BO799
Hirschmann OpenBAT-R trådløs AP/klient BAT-REUW99ACC99BO799E9999H Hirschmann OpenBAT-R trådløs AP/klient BAT-REUW99ACC99BO799E9999H Hirschmann OpenBAT-R trådløs AP/klient BAT-REUW99ACC99BO799E9999H
Product description
Rugged wireless LAN access point and/or client for use in industrial environments. Robust metal housing for mounting on DIN rails.
Port type and quantity
RJ45 LAN combo port: 10/100/1000BASE-TX, 1000BASE-SX/LX
Radio protocol
IEEE802.11a/b/g/h/n WLAN interface as per IEEE802.11n, up to 450MBit/s gross bandwidth.
Order No.
Supported Radio Standards
1st WLAN interface as per IEEE802.11n
More Interfaces
Ethernet RJ45 LAN combo-port: 10/100/1000BASE-TX, 1000BASE-SX/LX
Power supply/signaling contact
1 x terminal block, 2-pin; 1 x terminal block, 2-pin
V.24 interface
Configuration interface (COM)
AT modem connection
For automatic P2P connections verified over V.24 (train carriage coupling)
Serial gateway for WLAN or virtual COM interface via WLAN
USB interface
1 x USB to connect the AutoConfiguration Adapter ACA21-USB

Radio technology
Antenna connector Reverse SMA socket, 3 x MiMo antenna connectors
Range Depends on type of antenna, frequency range and data rate. Use the BAT-Planner for planning your wireless network.

Frequency band
Supports 2.4 GHz and 5 GHz: 2400 -2483.5 MHz (ISM) and 5170 -5850 MHz
Modulation 22M0F7D (DSSS/OFDM) at 2.4 GHz20M0G7D (OFDM) at 5 GHz
Encryption IEEE 802.11i / WPA2 with passphrase or 802.1x and hardware-accelerated AES, closed network, WEP64, WEP128, WEP152, user authentication, 802.1x /EAP, LEPS, WPA1/TKIP. Please refer to the HiLCOS data sheet for further information.

Power requirements
Operating voltage
Voltage Range 1: 24-48 VDC; Voltage Range 2: 24-48 VDC
Current consumption
12.95 W

Ambient conditions
Operating temperature
-40 ºC ... 70 ºC
Note Temperature of the surrounding air.

Storage/transport temperature
-40 ºC ... 85 ºC

Relative humidity (non-condensing)
10 % ... 95 %
MTBF 58 years (MIL-HDBK-217F)
Protective paint on PCB Yes (conformal coating)

Mechanical construction
Dimensions (W x H x D)
150 mm x 136 mm x 115 mm

DIN Rail

Protection class

Safety of information technology equipment
EN 60950-1
Radio R&TTE; EN 300 328 (2.4GHz), EN 301 893 (5 GHz); EN 301 489-1, EN 301 489-17
Scope of delivery and accessories
Scope of delivery Device, User Manual, Installation Guide, CD ROM, M12 Adapter cable for serial interface, return dispatch note, 3x dual band stub dipole antennas, 3 pin terminal connector for power supply (K type), 3 pin terminal connector for power supply (K type).
Accessories to order separately External antennas; external surge protection; cables 2 m, 5 m, 15 m; wall mount plate
