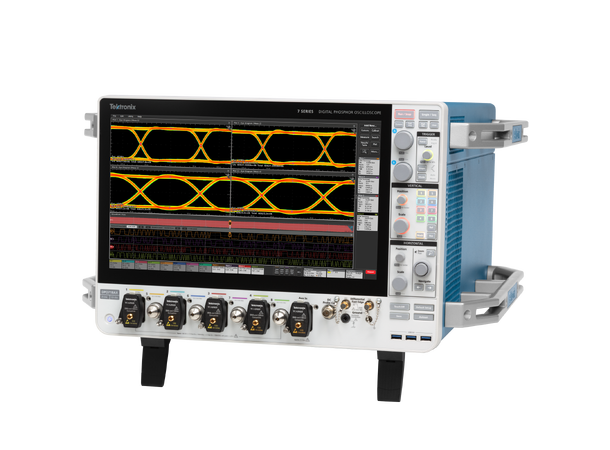

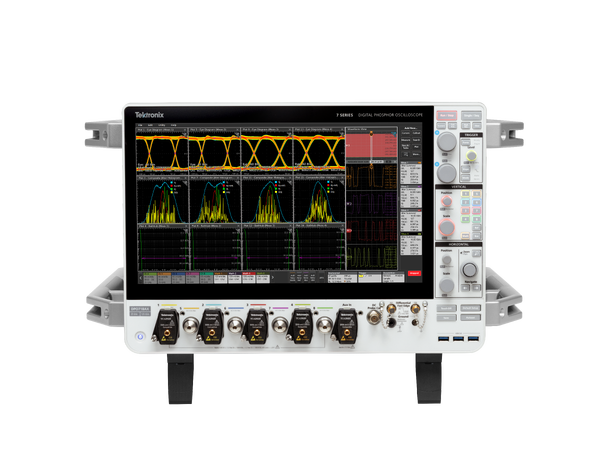

Tektronix DPO7 serie High-End Oscilloskop
The 7 Series DPO delivers unparalleled signal fidelity, high ENOB, low jitter, fast measurement throughput, and an award-winning user interface making it ideal for meeting the evolving needs of high-speed serial, high-energy physics, and key RF applications.
Bandwidth ranging from 8-25 GHz and compatible with TekConnect probes.
Product range:
- Analog channels: 4
- Bandwidth: 8 GHz - 25 GHz
- Sample rate: 125 GS/s
- Record length: 500 Mpts (std), 1G & 2G (opt)
- Display: 15.6 inch (396 mm) TFT color
- Resolution: High Definition (1,920 x 1,080) resolution

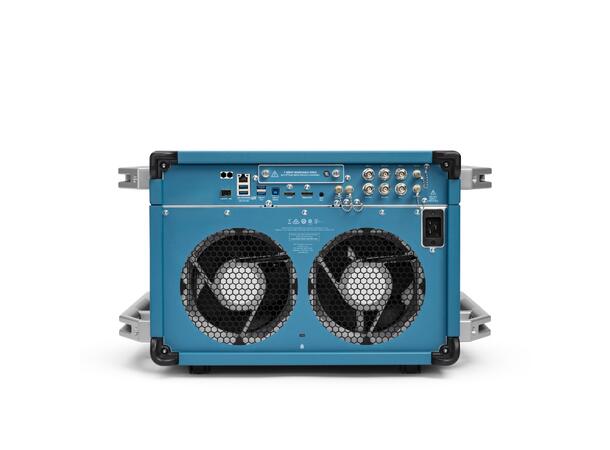

- Ports: 10G SFP+ LAN, 1G LAN, 4 USB 3.0 Host, 1 USB 3.0 Device, DisplayPort, HDMI
- Standard warranty: 1 year
Key features:
- Available bandwidths: 8 GHz, 10 GHz, 13 GHz, 16 GHz, 20 GHz, 25 GHz (customer upgradable)
- 4 TekConnect® input channels and one TekConnect Aux In each with TCA292D 50 O 2.92 mm input adapter
- Sample rate 125 GS/s on all 4 channels
- 10-bit ADC with highest ENOB and lowest random noise
- Precision timebase with low intrinsic jitter
- Record length of 500 Mpts standard. 1 or 2 Gpts optional
- P7700 and P7600 Series TriMode™ probe compatible
- 15.6 inch high-definition touch screen display (1920x1080 resolution)

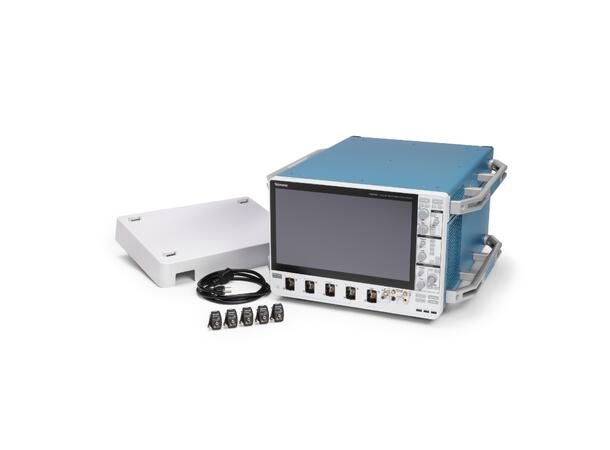

Ships with:
- Qty 5 - TCA292D adapters
- Qty 1 - Front Display Panel Cover
- Qty 1 - Power Cord (Order Opt A0-A99)
- Qty 1 - Anti-static wrist strap
- Qty 1 - AOMEI OneKey Recovery Professional License
- Qty 1- Calibration Certificate
- Qty 1 - Installation and Safety Manual (Japanese, Simplified Chinese, French, Spanish, German, Italian, Dutch)
Recommended accessories:
- HC7 - Hard Carrying Case for 7 Series DPO
- RM7 - Rackmount kit for 7 Series DPO
Alternative products:
Other proucts that might interrest you:
Recommende probes:
- P7720 - 20 GHz TriMode differential probe
- P7716 - 16 GHz TriMode differential probe
- P7713 - 13 GHz TriMode differential probe
- P7708 - 8 GHz TriMode differential probe
- P7633 - 33 GHz TriMode differential probe
- P7630 - 30 GHz TriMode differential probe
- P7625 - 25 GHz TriMode differential probe
Recommended software options/enhancements:
- Opt 7-DJA - Add Advanced Jitter Analysis
- Opt 7-SIM - Add Signal Integrity Modeling, Base
- TekScope PC
- SignalVu-PC
Service options:
- R4, R6
- T4PLUS, T6PLUS
- CD1, CD3, CD5
- ACC3, ACC5
- ISO
