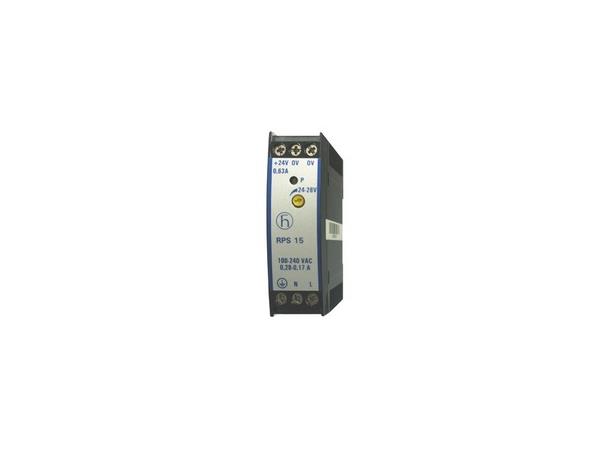

Hirschmann Power Supply RPS 15 230 VAC prim., 24 VDC sek., 0.63 A, 15W

Hirschmann Power Supply RPS 15

230 VAC prim., 24 VDC sek., 0.63 A, 15W

Varunummer: 943 662-015

Product description

Description24 V DC DIN rail power supply unit
TypeRPS 15
Order No.943 662-015

More Interfaces

Voltage input1 terminal block, 3-pin
Voltage output1 terminal block, 5-pin

Power requirements

Operating voltage230 V

Input data

Input voltage100 to 240 V AC; 50 to 60 Hz or 110 to 200 V DC

Current consumption

Current consumption0.17 A at 230 V AC
Activation current31 A bei 240 V AC and cold start

Output data

Output voltage24-28 V DC

Output current

Output currentnom. 0.63 A at 24 V DC

Service

DiagnosticsLED (power, DC ON)

Redundancy

Redundancy functionsPower supply units can be connected in parallel

Ambient conditions

Operating temperature-10 ºC to +70 ºC (from 60 ºC derating)
Storage/transport temperature-40 ºC to +85 ºC
Relative humidity (non-condensing)max. 95% without condensation
MTBFn/a

Mechanical construction

Dimensions (W x H x D)22.5 mm x 75 mm x 91 mm
MountingDIN Rail 35 mm
Weight130 g
Protection classIP 20

EMC interference immunity

EN 50082-1EN 61000-6-2 (includes EN 55024)
EN 50082-2EN 61000-6-2 (includes EN 55024)

EMC emitted immunity

EN 50081-1EN 50081-1
EN 50081-2EN 50081-2

Approvals

Safety of industrial control equipmentcUL 508
Safety of information technology equipmentcUL 60950-1
Hazardous locationsISA 12.12.01 Class 1 Div. 2
ShipbuildingGermanischer Lloyd

Scope of delivery and accessories

Scope of deliveryRail power supply,
Description and operating manual
