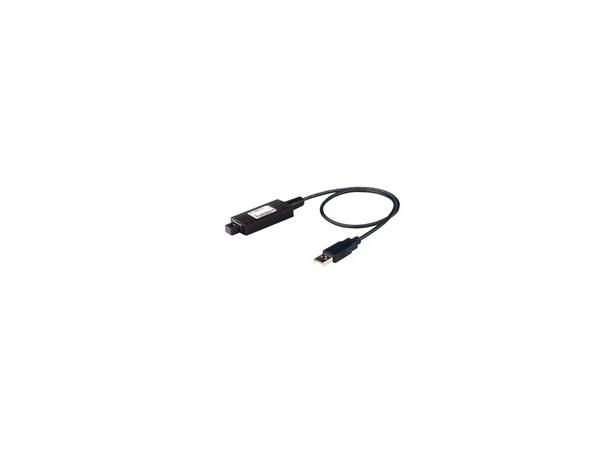

Hirschmann ACA 22-USB EEC Auto-Configuration Adapter, USB

Hirschmann ACA 22-USB EEC

Auto-Configuration Adapter, USB

Varunummer: 942 124-001

Product description

DescriptionAuto-configuration adapter 512 MB, with USB 2.0 connection and extended temperature range, saves two different versions of configuration data and operating software from the connected switch. It enables managed switches to be easily commissioned and quickly replaced.
TypeACA22-USB EEC
Order No.942 124-001

More Interfaces

USB interfaceUSB 2.0, A-Type connector

Power requirements

Operating voltagevia the USB interface on the switch

Service

Diagnosticswriting to ACA, reading from ACA, writing/reading not OK (display using LEDs on the switch)
Configurationvia USB interface of the switch and via SNMP/Web

Ambient conditions

Operating temperature-40 ºC ... 70 ºC
Storage/transport temperature-40 ºC ... 85 ºC
Relative humidity (non-condensing)10 % ... 95 %
MTBF228 years (MIL-HDBK-217F)

Mechanical construction

Dimensions (W x H x D)93 mm x 29 mm x 15 mm
Mountingplug-in module
Weight50 g
Protection classIP20
Cable length50 cm

Mechanical stability

IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration1 g, 8.4 Hz - 200 Hz, 30 cycles

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m

EMC emitted immunity

EN 55022EN 55022

Approvals

Hazardous locationsISA 12.12.01 Class 1 Div. 2; ATEX Zone 2
ShipbuildingGermanischer Lloyd
Safety of industrial control equipmentcUL 508
TransportationEN50121-4

Scope of delivery and accessories

Scope of deliverydevice, operating manual
