Based on the existing SM1P02-Ex headset, and incorporating Sensears unique dual protection feature; the ExDP headsets fills the marketplace need for a high performance intrinsically safe headset for extreme noise environments that require ATEX and IECEx certifications. With customer focus and hazardous environments at the forefront of this robust headset design to enhance safety and communications for improved efficiency in high noise and hazardous workplace environments.
The new cable connection at ear cup allows you to use it as a wired headset along with Bluetooth and Short Range or unplug the cable and use it as a completely wireless headset via Bluetooth and/or Short Range. It’s the perfect solution for your extreme high noise and hazardous environments such as explosive chemicals and fuels as well as combustible powders.
Intrinsically safe Ex:For explosive environments that require ATEX and IECEx certification. The SM1P02-Ex series is the next generation, intrinsically safe headset. With customer focus and hazardous environments at the forefront of this robust headset design to enhance safety and communications for improved efficiency in high noise and hazardous workplace environments.
Compatible with industry leading intrinsically safe two-way radios via removable wired connection or Bluetooth®
Bluetooth® - Connect to intrinsically safe mobile devices (HFP, HSP and A2DP profiles) via Bluetooth® for conversation and audio streaming
Programmable ‘in-ear’ Volume Limiter: Limit ‘in-ear’ exposure to 82 dB(A)
Up to 38 dB SNR depending on Headset style.
Improved Short Range with additional channel banks for headset-to-headset communication (Range approx 50 meters or 150 ft)
SENS® Technology - remain aware of surrounding noises and hazards with 360° situational awareness
Face-to-face conversation in high noise (No need to remove your headset or move to a quiet area), SENS® Technology enhances speech while suppressing background noise to a safe level.
Clear communication up to 120 dB noise levels with Noise-Cancelling boom mic.
VOX capable
Built-in rechargeable (lithium-ion) battery with up to 24 hour battery life and 4 hour charge time
Rugged lightweight design

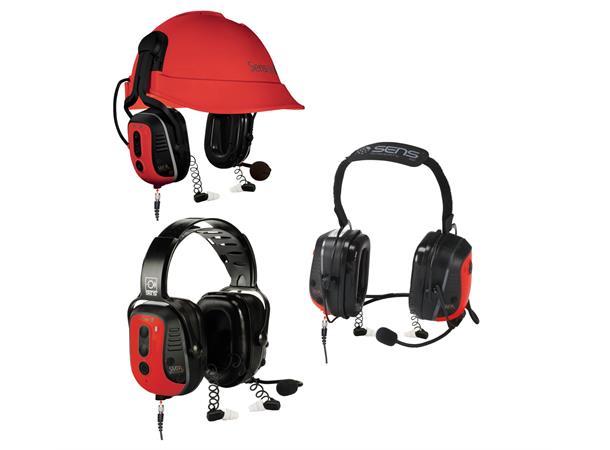

Available in headband, behind-the-neck, and helmet style
USB for programming allows simple configuration of the headset and software updates.
Intrinsically Safe Ex: (ATEX/IECEx) certifications
| Technical
Data |
|
| Battery |
24 hours(wired connection) |
| 18 hours
Wireless with Bluetooth/Short Range activated |
| 4 hours
charge time |
| 2250 mAh
capacity, Li-ion |
| SENS®
3600 Situational Awareness |
95 dBA |
| Voice Transmission |
Boom microphone – noise
canceling |
| VOX
capable when used in ShortRange mode for Headset to Headset communication |
| VOX
capable when connected to VOX enabled two-way radio.* |
| *(Must
be verified and tested for compatibility with the two-way radio). |
| IP
rating |
IP54 |
| Weight |
495g |
| Operating
temperature |
-20°C to +60°C |
| Volume limiter |
82 dB(A) [programmable] – only
applicable when headset is powered on |
| Wired
connectivity |
6-pin Hirose connector |
| Short
Range |
Half-duplex communications |
| Up to 8
programmable FM channels |
| Up to 50
meters (164 feet) |
| Bluetooth |
Bluetooth® 3.0: HFP (8KHz and
16KHz), HSP, A2DP |
| 15
meters (49 feet) |
| Hearing
protection |
Standard EN352-1/EN352-3 |
| Result
SNR: |
| HB 37dB |
| BTN 36
dB |
| HM 38 dB |
Ex Certification
ATEX and IECEx
II 2G Ex ib IIC T4 Gb (-20°C =Ta =+40°C)
II 2D Ex ib IIIC T155°C Db (-20°C =Ta =+40°C)
I M1 Ex ia I Ma (-20°C =Ta =+60°C)
