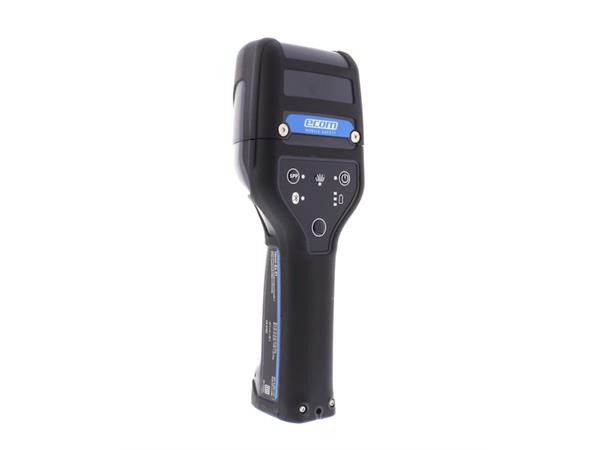

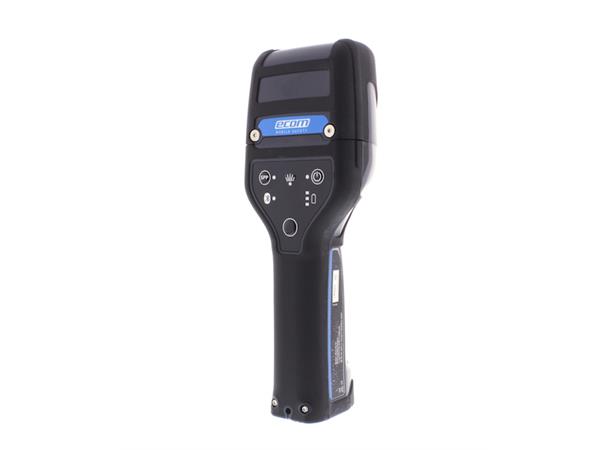

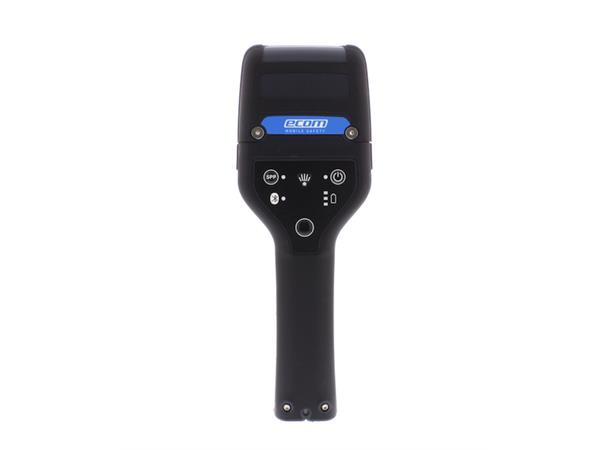

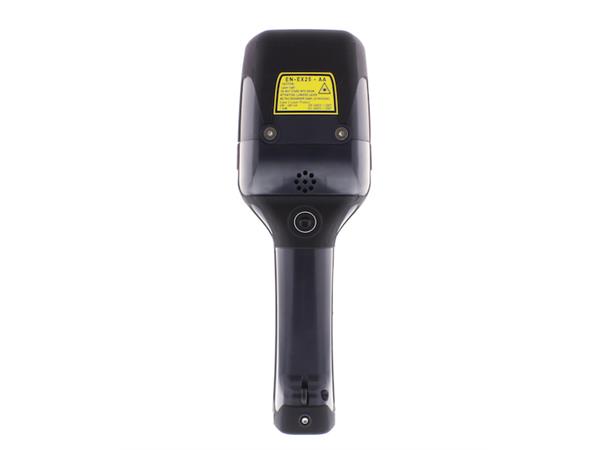

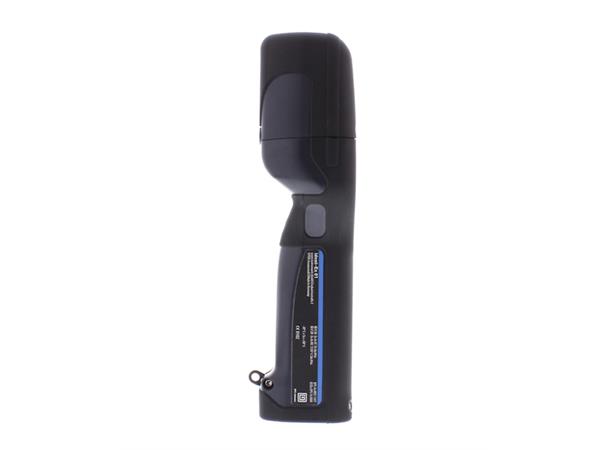

Ident-Ex® 01 Barcode/RFID Scanner

Zone 1/21 and Div 1

Varenr: 701

Using a unique modular design, Ident-Ex® 01 can be specifically configured to the customer‘s requirements by selecting different head modules.

When requirements change, the head module on the unit can be replaced by one of the ecom-approved Service Centers. The device can be connected via Bluetooth® to one of our base products Smart-Ex® 02 and Tab-Ex® 02 Series, and even with any generic device.


Technical Data
DimensionsWith Ex-25 head module: 235 x 84 x 58mm
Remaining head modules: 221 x 84 x 58mm
Weight425-560g (depends on head module)
BatteryLi-Ion rechargeable; 12+ hours;
10.000+ scans with one battery charge
Internal StorageOffline Batchmode
2 MBytes, 2D QR barcodes = 500+,
RFID tags (ID only) = 500+
BluetoothClass II, up to approx. 10 meters
Scan PerformanceRFID* = up to 1.5m
Barcode = 15 cm to 15 m
* Tag and environment dependent


Ex Certification


II 2G Ex ib IIC T4 Gb IP64
II 2D Ex ib IIIC T135°C Db IP 6X


Ex ib IIC T4 Gb IP64
Ex ib IIIC T135°C Db IP 6X


Class I, II, III Div. 1 Groups A-G, T4, T135°C
Cl I Zn 1, AEx ia IIC T4 Gb IP64
Cl II Zn 21, AEx ia IIIC T135°C Db IP64
Ex ia IIC T4 Gb
Ex ia IIIC T135°C Db
