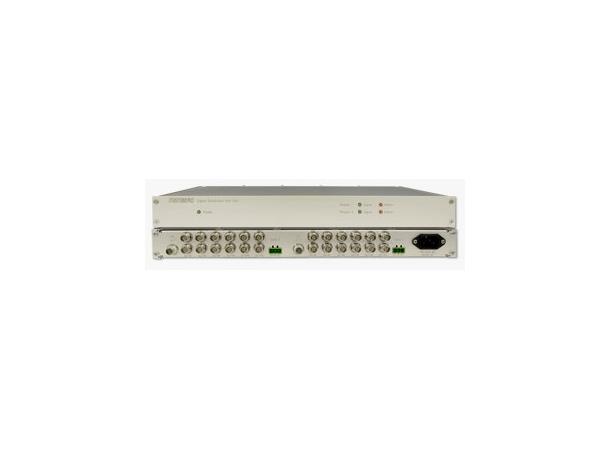

SDU/TCM-FO-16/MP
Fiber optic converter for time code signals with amplitude modulated sine wave
carriers of 1kHz (IRIG-B AM)
Input:
1 x Time Code amplitude modulated sinewave input
0.6...4Vpp, via female BNC connector
Outputs:
16 x 850nm multimode FO output via ST connectors
(for GI 50/125m or GI 62,5/125m gradient
ber)
typ. 15uW per output
---------------------------------------------------------------------------------------------
Technical specifications:
Power supply: 100-240 V AC (50-60 Hz)
Power consumption: max. 30 W
19" metal chassis, 1 U/84 HP
(483 mm wide x 43 mm high x 285 mm deep)
----------------------------------------------------------------------------------------------
