DU70

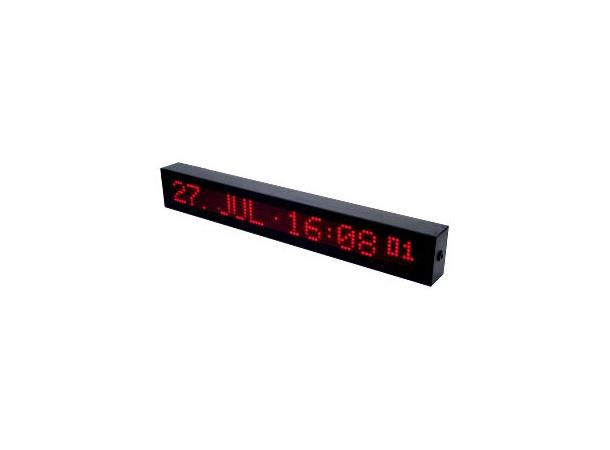

Large LED display with the following features:
- LED dot-matrix display, red, 50mm character height, for day, month and time
- one serial interface as RS232 and/or 20mA/current loop (active or passive)
- integrated power supply (85-264VAC / 120-375VDC)
Built-up in a plastic-coated steel sheet case (682mm x 100mm x 60mm / width x height x depth), IP30, black
Characteristics
Display: LED-Matrix Display (7 dots high) for time and date 50mm character height Without RF signal the clock runs on XTAL with an accuracy of ±1·10-5, indicated by LED
Interface: One serial RS232/20mA interface
Data format of interfaces: Baudrate: 9600 baud
Dataformat: 7E2
1 active/passive 20mA current loop output (selectable)
1 active/passive 20mA current loop input (selectable)
Output string: 32 ASCII characters with date, time and status information
Physical dimensions: 682mm x 100mm x 60mm ( width x height x depth)
Electrical connectors: 2 x 25 pin DSub female connector
BNC antenna connector (only DCF77 variant)
power cord receptacle
Power supply: 85-264VAC (50/60Hz) / 120-375VDC
Backup battery type: In case of supply voltage failure the on-board RTC keeps the time based on XTAL for more than 100 hours
Form Factor: Plastic coated steel sheet case, black (optional: white), IP30 protected
Ambient temperature: 0 ... 50°C / 32 ... 122°F
Humidity: Max. 85%
RoHS-Status of the product: This product is fully RoHS compliant
WEEE status of the product: This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself.
