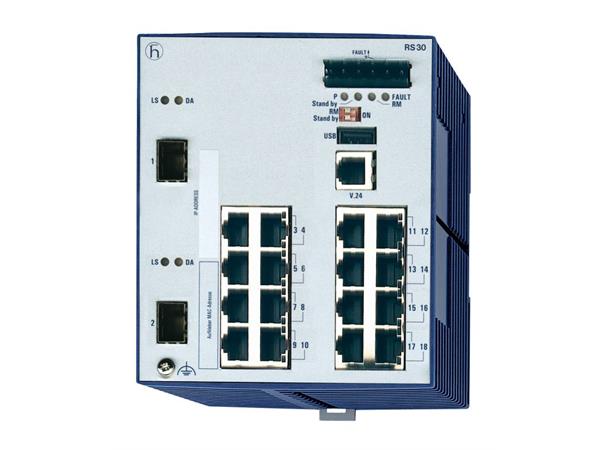

OpenRail RS30 16xTX 2xGIGA (SFP+RJ45)
OpenRail RS30 16xTX 2xGIGA (SFP+RJ45)
-40-70°C 9,6-60VDC, GL, unmanaged
Varenr:
RS30-1602O6T1EDHU
Forespørsel
Beskrivelse
Dokumentasjon
Product description
Description
18 port Gigabit/Fast-Ethernet-Switch (2 x Gigabit Ethernet, 16 x Fast Ethernet), unmanaged, for DIN rail store-and-forward-switching, fanless design
Port type and quantity
18 Ports in total, 2 Gigabit Ethernet ports; 1. uplink: Gigabit SFP-Slot; 2. uplink: 10/1000BASE-TX, RJ45; 16 x standard 10/100 BASE TX, RJ45
Type
RS30-1602O6T1EDHUHH
Order No.
RS30-1602O6T1EDHUHH
More Interfaces
Power supply/signaling contact
1 x plug-in terminal block, 6-pin
Network size - length of cable
Twisted pair (TP)
0 m ... 100 m
Multimode fiber (MM) 50/125 µm
cf. SFP LWL module M-SFP-SX/LC and M-SFP-LX/LC
Multimode fiber (MM) 62.5/125 µm
cf. SFP LWL module M-SFP-SX/LC and M-SFP-LX/LC
Single mode fiber (SM) 9/125 µm
cf. SFP LWL module M-SFP-LX/LC
Single mode fiber (LH) 9/125 µm (long haul transceiver)
46 - 150 km, 14 - 47 dB link budget at 1550 nm, A = 0,3 dB/km, 3 dB reserve, D = 19 ps/(nm x km)
Network size - cascadibility
Line - / star topology
Any
Power requirements
Operating voltage
12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)
Current consumption at 24 V DC
529
Current consumption at 48 V DC
264
Power output in Btu (IT) h
43.4
Ambient conditions
Operating temperature
-40 ºC ... 70 ºC
Storage/transport temperature
-40 ºC ... 85 ºC
Relative humidity (non-condensing)
10 % ... 95 %
MTBF
39.7 years (MIL-HDBK-217F)
Protective paint on PCB
Yes (conformal coating)
Mechanical construction
Dimensions (W x H x D)
110 mm x 131 mm x 111 mm
Mounting
DIN Rail
Protection class
IP20
Mechanical stability
IEC 60068-2-27 shock
15 g, 11 ms duration, 18 schocks
IEC 60068-2-6 vibration
1 mm, 2 Hz - 13.2 Hz, 90 min.; 0.7g, 13,2 Hz - 100 Hz, 90 min.; 3.5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min.; 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)
6 kV contact discharge, 8kV air discharge
EN 61000-4-3 electromagnetic field
10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst)
2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage
power line: 2kV (line/earth), 1kV (line/line), 1kV data line
EN 61000-4-6 conducted immunity
3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)
EMC emitted immunity
FCC CFR47 Part 15
FCC CFR47 Part 15
EN 55022
EN 55022 Class A
Approvals
Safety of industrial control equipment
cUL 508
Hazardous locations
cUL 1604 Class1 Div 2
Germanischer Lloyd
Germanischer Lloyd
Railway norm
EN 50121-4
Substation
IEC 61850-3, IEEE 1613
