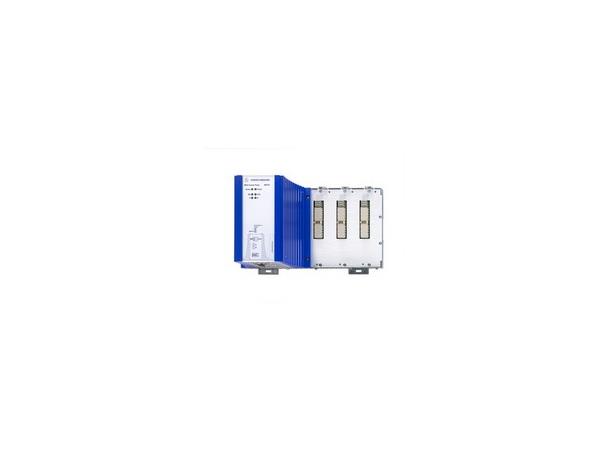

Hirschmann Power MICE Switch MSP30-08040 MSP30-24040SCZ999HHE2A

Hirschmann Power MICE Switch MSP30-08040

MSP30-24040SCZ999HHE2A

Varenr: MSP30-24040SCZ999HHE

Product description

DescriptionGigabit Ethernet-Switch according to IEEE 802.3 Modular, managed, Industrial Switch for DIN Rail Store-and-Forward-Switching, fan less design, HiOS Layer 2 Advanced, HiOS Layer 3 Advanced
Port type and quantityFast Ethernet ports in total: 24; Gigabit Ethernet ports: 4
TypeMSP30-24040SCZ999HHE2A05.0
Order No.MSP30-24040SCZ999HHE2A05.0

Classification

Belden brandHirschmann

More Interfaces

Power supply/signaling contact2 x plug-in terminal block, 4-pin
V.24 interface1 x RJ45 socket
USB interface1 x USB to connect the AutoConfiguration Adapter ACA21/22-USB

Network size - cascadibility

Line - / star topologyany

Power requirements

Operating voltage24 V DC (18-32) V

Ambient conditions

Operating temperature0 ºC ... 60 ºC
Storage/transport temperature-40 ºC ... 70 ºC
Relative humidity (non-condensing)10 % ... 95 %

Mechanical construction

Dimensions (W x H x D)391 mm x 147.2 mm x 141.75 mm
Width391 mm
Height147.2 mm
Depth141.75 mm
MountingDIN Rail
Protection classIP20

Mechanical stability

IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration3.5 mm, 5–8.4 Hz, 10 cycles, 1 octave/min; 1 g, 8.4–150 Hz, 10 cycles, 1 octave/min

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m (80-3000 MHz)
EN 61000-4-4 fast transients (burst)2 kV power line, 4 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 conducted immunity10 V (150 kHz-80 MHz)

EMC emitted immunity

FCC CFR47 Part 15FCC 47 CFR Part 15 Class A
EN 55022EN 55022 Class A

Approvals

Basis StandardC-Tick, CE, EN61131
Safety of information technology equipmentEN 60950-1 ,
TransportationNEMA TS2
Country ApprovalC-Tick

Scope of delivery and accessories

Scope of deliveryDevice, 2 x terminal block, operating manual, CD
Accessories to order separatelyMICE Switch Power Media Modules MSM; Rail Power Supply RPS 30, RPS 60/48V EEC, RPS 80, RPS90/48V HV, RPS90/48V LV, RPS 120 EEC; USB Terminal cable; Auto Configuration Adapter (ACA21, ACA31); Industrial HiVision Network Management System; 19" Installation frame
