Product description
Description

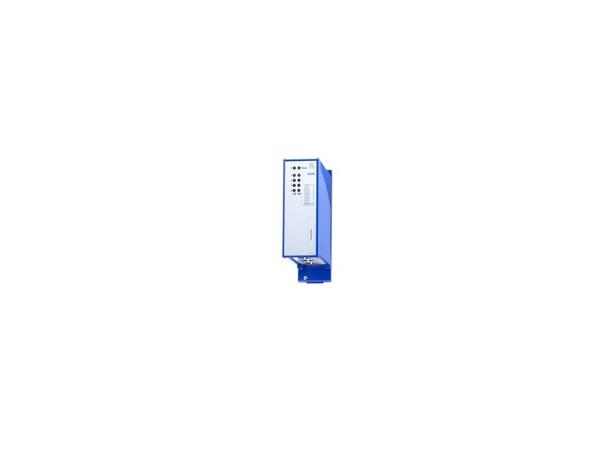

Gigabit Ethernet media module for PowerMICE Switches (MSP), supports PoE and PoE+ (Power over Ethernet Plus, IEEE 802.3at) per module
Port type and quantity
Port 1: 10/100/1000Base-TX, RJ45; Port 2: 10/100/1000Base-TX, RJ45; Port 3: 10/100/1000Base-TX, RJ45; Port 4: 10/100/1000Base-Tx, RJ45
Type
MSM42-T1T1T1T1SZ9HH9E99.9
Order No.
MSM42-T1T1T1T1SZ9HH9E99.9
Network size - length of cable
Twisted pair (TP) 0 m ... 100 m
Multimode fiber (MM) 50/125 µm -
Multimode fiber (MM) 62.5/125 µm -
Single mode fiber (SM) 9/125 µm -
Single mode fiber (LH) 9/125 µm (long haul transceiver) -
Power requirements
Operating voltage
Power supply via the backplane of the MICE switch
Ambient conditions
Operating temperature 0 ºC ... 60 ºC
Storage/transport temperature -40 ºC ... 85 ºC
Protective paint on PCB
No
Relative humidity (non-condensing)
5 % ... 95 %
Mechanical construction
Dimensions (W x H x D)
38 mm x 134 mm x 118 mm
Mounting
Backplane
Weight n/a
Protection class
IP20
Mechanical stability
IEC 60068-2-27 shock 15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD) 4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field 10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst) 2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 conducted immunity 10 V (150 kHz-80 MHz)
EMC emitted immunity
FCC CFR47 Part 15 FCC 47 CFR Part 15 Class A
EN 55022 EN 55022 Class A
Approvals
Basis Standard
CE, EN61131
Safety of information technology equipment EN 60950-1
Transportation NEMA TS2
Country Approval C-Tick
