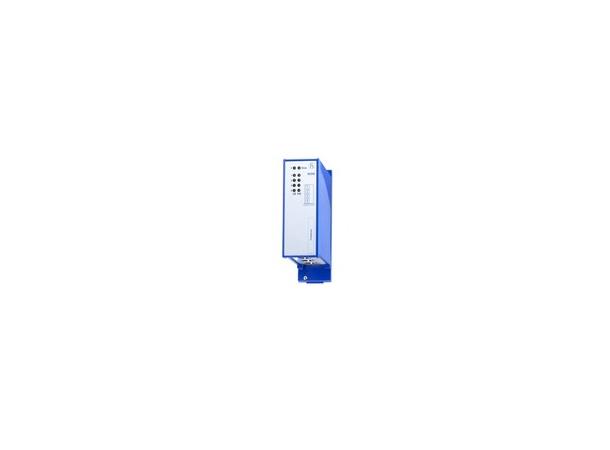

Hirschmann Power MICE Module, 4x RJ45
Hirschmann Power MICE Module, 4x RJ45
MSM40-T1T1T1T1SU9HH9E
Varenr:
MSM40-4xT1SU9HH9
Forespørsel
Beskrivelse
Dokumentasjon
Product description
Description
Gigabit Ethernet media module for PowerMICE Switche (MSP) , Standard Ethernet media modul
Port type and quantity
Port 1: 10/100/1000BASE-TX, RJ45; Port 2: 10/100/1000BASE-TX, RJ45; Port 3: 10/100/1000BASE-TX, RJ45; Port 4: 10/100/1000BASE-TX, RJ45
Network size - length of cable
Twisted pair (TP)
Port 1: 0-100 m Port 2: 0-100 m Port 3: 0-100 m Port 4: 0-100 m
Power requirements
Operating Voltage
Power supply via the backplane of the MSP switch
Power consumption
3 W
Power output in BTU (IT)/h
10
Software
Diagnostics
LEDs (power, mode, link/data)
Ambient conditions
Operating temperature
0-+60 °C
Storage/transport temperature
-40-+85 °C
Relative humidity (non-condensing)
5-95 %
Mechanical construction
Dimensions (WxHxD)
38 mm × 133 mm × 118 mm
Weight
193 g
Mounting
Backplane
Protection class
IP20
Mechanical stability
IEC 60068-2-6 vibration
2 Hz - 13.2 Hz with 1 mm amplitude, 5 Hz - 8.4 Hz with 3.5 mm amplitude; 8.4 Hz - 150 Hz with 1 g
IEC 60068-2-27 shock
15 g, 11 ms duration
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)
± 6 kV contact discharge; ± 8 kV air discharge
EN 61000-4-3 electromagnetic field
10 V/m (80 MHz-3000 MHz)
EN 61000-4-4 fast transients (burst)
± 2 kV power line; ± 4 kV data line
EN 61000-4-5 surge voltage
power line: ± 2 kV (line/earth), ± 1 kV (line/line); data line: ± 1 kV (line/earth)
EN 61000-4-6 Conducted Immunity
10 V (150 kHz-80 MHz)
EMC emitted immunity
EN 55022
EN 55032 Class A
FCC CFR47 Part 15
FCC 47CFR Part 15, Class A
Approvals
Basis Standard
C-Tick EN61131
Safety of industrial control equipment
EN 60950
Shipbuilding
GL - Germanischer Lloyd
Transportation
NEMA TS2
Scope of delivery and accessories
Scope of delivery
Device, General safety instructions
