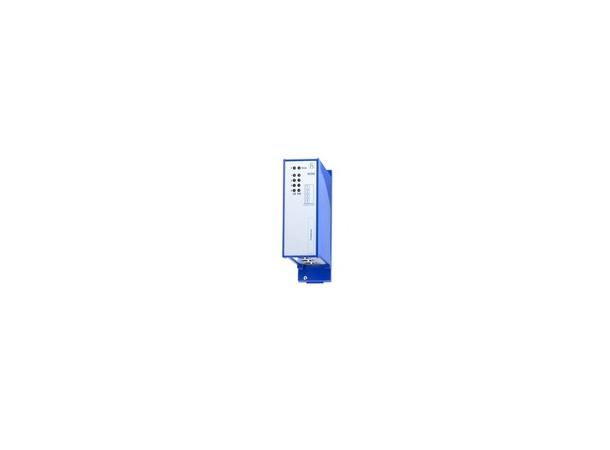

Hirschmann Power MICE Module, 4x RJ45 MSM40-C1C1C1C1SU9HH9E

Hirschmann Power MICE Module, 4x RJ45

MSM40-C1C1C1C1SU9HH9E

Varenr: MSM40-4xC1SU9HH9
Product description
DescriptionGigabit Ethernet media module for PowerMICE Switche (MSP) , Standard Ethernet media modul
Port type and quantityPort 1: Gigabit Combo Port; Port 2: Gigabit Combo Port; Port 3: Gigabit Combo Port; Port 4: Gigabit Combo Port
Network size - length of cable
Single mode fiber (SM) 9/125 µmPort 1: see SFP module M-SFP-LX/LC Port 2: see SFP module M-SFP-LX/LC Port 3: see SFP module M-SFP-LX/LC Port 4: see SFP module M-SFP-LX/LC
Single mode fiber (LH) 9/125 µm (long haul transceiver)Port 1: see SFP module M-SFP-LH/LC and M-SFP-LH+/LC Port 2: see SFP module M-SFP-LH/LC and M-SFP-LH+/LC Port 3: see SFP module M-SFP-LH/LC and M-SFP-LH+/LC Port 4: see SFP module M-SFP-LH/LC and M-SFP-LH+/LC
Multimode fiber (MM) 50/125 µmPort 1: see SFP module M-SFP-SX/LC and M-SFP-LX/LC Port 2: see SFP module M-SFP-SX/LC and M-SFP-LX/LC Port 3: see SFP module M-SFP-SX/LC and M-SFP-LX/LC Port 4: see SFP module M-SFP-SX/LC and M-SFP-LX/LC
Multimode fiber (MM) 62.5/125 µmPort 1: see SFP module M-SFP-SX/LC and M-SFP-LX/LC Port 2: see SFP module M-SFP-SX/LC and M-SFP-LX/LC Port 3: see SFP module M-SFP-SX/LC and M-SFP-LX/LC Port 4: see SFP module M-SFP-SX/LC and M-SFP-LX/LC
Power requirements
Operating VoltagePower supply via the backplane of the MSP switch
Power consumption5 W
Power output in BTU (IT)/h17
Software
DiagnosticsLEDs (power, mode, link/data)
Ambient conditions
Operating temperature0-+60 °C
Storage/transport temperature-40-+85 °C
Relative humidity (non-condensing)5-95 %
Mechanical construction
Dimensions (WxHxD)38 mm × 133 mm × 118 mm
Weight214 g without SFP transceiver
MountingBackplane
Protection classIP20
Mechanical stability
IEC 60068-2-6 vibration2 Hz - 13.2 Hz with 1 mm amplitude, 5 Hz - 8.4 Hz with 3.5 mm amplitude; 8.4 Hz - 150 Hz with 1 g
IEC 60068-2-27 shock15 g, 11 ms duration
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)± 6 kV contact discharge; ± 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m (80 MHz-3000 MHz)
EN 61000-4-4 fast transients (burst)± 2 kV power line; ± 4 kV data line
EN 61000-4-5 surge voltagepower line: ± 2 kV (line/earth), ± 1 kV (line/line); data line: ± 1 kV (line/earth)
EN 61000-4-6 Conducted Immunity10 V (150 kHz-80 MHz)
EMC emitted immunity
EN 55022EN 55032 Class A
FCC CFR47 Part 15FCC 47CFR Part 15, Class A
Approvals
Basis StandardC-Tick EN61131
Safety of industrial control equipmentEN 60950
ShipbuildingGL - Germanischer Lloyd
TransportationNEMA TS2
Scope of delivery and accessories
Scope of deliveryDevice, General safety instructions
