Hirschmann Greyhound GRS106 GRS106-6F8T16TSGGZ9HHSE2S99XX.X.XX

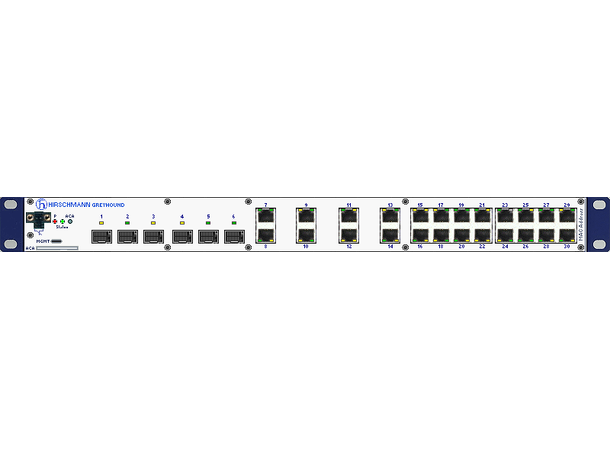

Hirschmann Greyhound GRS106

GRS106-6F8T16TSGGZ9HHSE2S99XX.X.XX

Varenr: GRS106-6F8T16T-03
Product description
DescriptionGREYHOUND 105/106 Series, Managed Industrial Switch, fanless design, 19" rack mount, according to IEEE 802.3, 6x1/2.5/10GE +8x1/2.5GE +16xGE
Software VersionHiOS 10.3
Port type and quantity30 Ports in total, 6x GE/2.5GE/10GE SFP(+) slot + 8x FE/GE/2.5GE TX ports + 16x FE/GE TX ports
More Interfaces
Power supply/signaling contactPower supply input 1: IEC plug, Signal contact: 2 pin plug-in terminal block , Power supply input 2: IEC plug
SD-card slot1 x SD card slot to connect the auto configuration adapter ACA31
USB-C1 x USB-C (client) for local management
Network size - length of cable
Twisted pair (TP)0-100 m
Single mode fiber (SM) 9/125 µmsee SFP modules
Single mode fiber (LH) 9/125 µm (long haul transceiver)see SFP modules
Multimode fiber (MM) 50/125 µmsee SFP modules
Multimode fiber (MM) 62.5/125 µmsee SFP modules
Network size - cascadibility
Line - / star topologyany
Power requirements
Operating VoltagePower supply input 1: 110 - 240 VAC, 50 Hz - 60 Hz , Power supply input 2: 110 - 240 VAC, 50 Hz - 60 Hz
Power consumptionBasic unit with one power supply max. 35W
Power output in BTU (IT)/hmax. 120
Software
SwitchingCoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports, GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN
RedundancyLink Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2), RSTP 802.1D-2004 (IEC62439-1), RSTP Guards
ManagementDual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, HTTP, HTTPS, IPv6 Management, Traps, SNMP v1/v2/v3, SNMPv3 Traps, Telnet
DiagnosticsManagement Address Conflict Detection, MAC Notification, Signal Contact, Device Status Indication, TCPDump, LEDs, Syslog, Persistent Logging on ACA, Port Monitoring with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, System Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management, Configuration Check Dialog, Switch Dump
ConfigurationAutomatic Configuration Undo (roll-back), Configuration Fingerprint, XML-based Configuration File, Backup config on a remote server when saving, Clear config but keep IP settings, BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP Server: Pools per VLAN, AutoConfiguration Adapter ACA31 (SD card), HiDiscovery, DHCP Relay with Option 82, Auto Disable, USB-C Management support, Command Line Interface (CLI), CLI Scripting, CLI script handling over ENVM at boot, Full-featured MIB Support, Context-sensitive Help, HTML5 based Management
SecuritySigned Firmware Images, MAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, Integrated Authentication Server (IAS), RADIUS VLAN Assignment, Denial-of-Service Prevention, RADIUS Client, VLAN-based ACL, Ingress VLAN-based ACL, Basic ACL, Access to Management restricted by VLAN, Device Security Indication, Audit Trail, Secure Boot, CLI Logging, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, Configurable Password Policy, Configurable Number of Login Attempts, SNMP Logging, Multiple Privilege Levels, Local User Management, Remote Authentication via RADIUS, User Account Locking, Password change on first login
Time synchronisationPTPv2 Transparent Clock two-step, PTPv2 Boundary Clock, BC with Up to 8 Sync / s , 802.1AS, 802.1AS-2020, Buffered Real Time Clock, SNTP Client, SNTP Server
Industrial ProfilesEtherNet/IP Protocol, Modbus TCP, PROFINET Protocol
MiscellaneousManual Cable Crossing, Port Power Down
Ambient conditions
MTBF (Telecordia SR-332 Issue 3) @ 25°C837 450
Operating temperature-10 - +60
Storage/transport temperature-20 - +70 °C
Relative humidity (non-condensing)5-90 %
Mechanical construction
Dimensions (WxHxD)444 x 44 x 355 mm
Weight5 kg estimated
MountingRack mount
Protection classIP30
Mechanical stability
IEC 60068-2-6 vibration3.5 mm, 5 Hz – 8.4 Hz, 10 cycles, 1 octave/min.; 1 g, 8.4 Hz-200 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field20 V/m (800-1000 MHz), 10V/m (80-800 MHz ; 1000-6000 MHz); 1 kHz, 80% AM
EN 61000-4-4 fast transients (burst)2 kV power line, 4 kV data line STP, 2 kV data line UTP
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth) and 1 kV (line/line); data line: 2 kV
EN 61000-4-6 Conducted Immunity10 V (150 kHz - 80 MHz)
EMC emitted immunity
EN 55032EN 55032 Class A
Approvals
Basis StandardCE, FCC, EN61131
Safety of information technology equipmentEN62368
Reliability
Guarantee60 months (please refer to the terms of guarantee for detailed information)
Scope of delivery and accessories
Accessories to Order SeparatelyNetwork Management Industrial HiVision, ACA31, SFP/SFP+
Scope of deliveryDevice, General safety instructions
