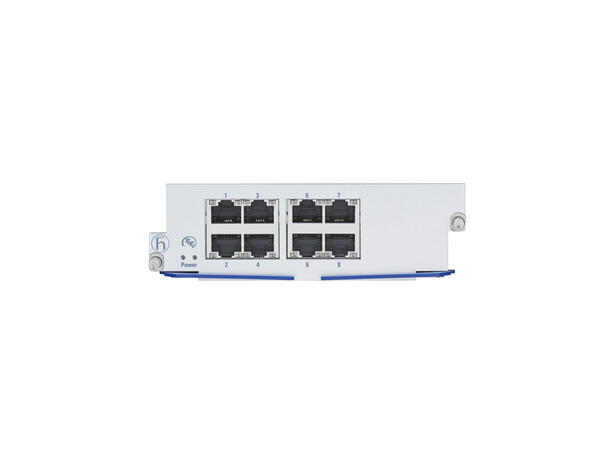

Greyhound GMM40 Module 8xTX/RJ45 gigabit GMM40-TTTTTTTTEUYHHS999.9.99

Greyhound GMM40 Module 8xTX/RJ45 gigabit

GMM40-TTTTTTTTEUYHHS999.9.99

Varenr: GMM40-TTTTTTTTEUYHHS
Product description
DescriptionGREYHOUND1042 Gigabit Ethernet media module
Port type and quantity8 ports FE/GE ; 2x FE/GE, RJ45 ; 2x FE/GE, RJ45 ; 2x FE/GE, RJ45 ; 2x FE/GE, RJ45
Network size - length of cable
Twisted pair (TP)port 1 and 3: 0-100 m; port 5 and 7: 0-100 m; port 2 and 4: 0-100 m; port 6 and 8: 0-100 m;
Power requirements
Operating Voltagevia switch
Power consumption3.5 W
Power output in BTU (IT)/h12
Ambient conditions
MTBF (Telecordia SR-332 Issue 3) @ 25°C5 151 671 h
Operating temperature-40-+70 °C
NoteIEC 60068-2-2 Dry Heat Test +85°C 16 Hours
Storage/transport temperature-40-+85 °C
Relative humidity (non-condensing)5-95 %
Protective paint on PCBYes (conformal coating)
Mechanical construction
Weight490 g
Mechanical stability
IEC 60068-2-6 vibration1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)8 kV contact discharge, 15 kV air discharge
EN 61000-4-3 electromagnetic field35 V/m (80-2700 MHz); 1 kHz, 80% AM
EN 61000-4-4 fast transients (burst)4 kV power line, 4 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line); data line: 1 kV; IEEE1613: power line 5kV (line/earth)
EN 61000-4-6 Conducted Immunity3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EN 61000-4-16 mains frequency voltage30 V, 50 Hz continous; 300 V, 50 Hz 1 s
EMC emitted immunity
EN 55032EN 55032 Class A
Approvals
Safety of industrial control equipmentEN61131, EN60950, cUL60950
ShipbuildingDNV
Reliability
Guarantee60 months (please refer to the terms of guarantee for detailed information)
Scope of delivery and accessories
Scope of deliveryDevice, General safety instructions
