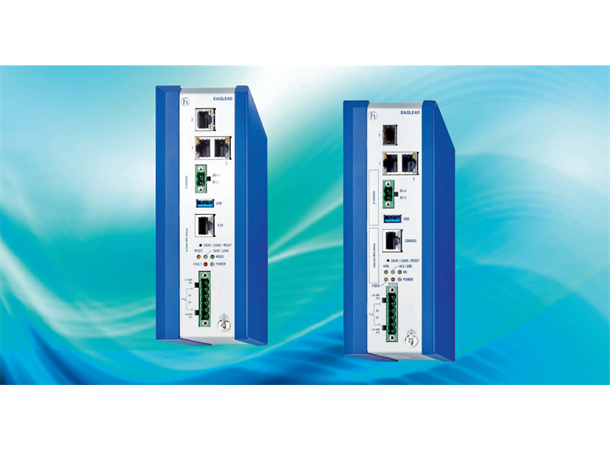

Hirschmann EAGLE40 Security Firewall EAGLE40-031O6SCCZ9HSRAINXX.X.XX

Hirschmann EAGLE40 Security Firewall

EAGLE40-031O6SCCZ9HSRAINXX.X.XX

Varenr: EAGLE40-031O6SCC-02
Product description
DescriptionNext-Generation Firewall with Stateful Packet Inspection , IPSec VPN , SW Version 04.3. and Deep Packet Inspection
Port type and quantity3 ports in total; 2 x Gigabit Ethernet RJ45 LAN +, 1 x Gigabit Ethernet SFP WAN
Port Speed10/100/1000 Mbit/s RJ45, 1000 Mbit/s SFP
More Interfaces
USB interface1 x USB 3.0 socket to connect an approved USB storage device
Digital Input1 x plug-in terminal block, 2-pin
Power Supply1 x plug-in terminal block, 6-pin
Digital Output1 x max. 60 V DC or max. 30 V AC, SELV, max. 1A
Hardware
Bypass2 x Gigabit Ethernet Copper (2 x 1) with Gen3 Bypass
CPUIntel Atom E3825 @ 1.33GHz
EncryptionTPM 2.0 (Trusted Platform Module)*
MemoryDDR3L 2GB
StorageNAND Flash 4GB
Power requirements
Operating VoltageDual 20 ~ 54 V DC
Power consumptionmax. 15 W
Power output in BTU (IT)/h51 BTU (IT)/h
Security features
Multipoint VPNIPSec, IKE v1/v2, 3DES, AES (-128, -192, -256), Pre-Shared Key (PSK), X.509v3 Zertifikate, MD5, SHA-1, NAT-T, Hub-and-Spoke
Deep Packet InspectionIndustrial Automation Protection Suite (Ethernet/IP + Modbus + OPC Enforcer)
Stateful inspection firewallFirewall rules (incoming/outgoing, management)
Software
RedundancyVRRP (Virtual Router Redundancy Protocol), Tracking Framework for VRRP
ManagementSNMPv3, SSH2/SFTP, HTTPS, Serial CLI, SNMPv1/2, local and central User Management (RADIUS), HiDiscovery, Industrial HiVision, HiView
DiagnosticsLEDs (Power, Link Status, Data, Status), Signal Contact (24 V DC/1 A), Log File, Syslog, Configuration check RMON (Statistic), Trap for changes and configuration saves , Verbose syslog with traffic information
ConfigurationCommand Line Interface (CLI), Web Interface, Auto Configuration Adapter (ACA22, ACA31), HiDiscovery, Industrial HiVision, HiView
SecurityDoS prevention, IPSec VPN, Audit trail, Role based Access Control, IEEE1686 compliant configuration possible, Firewall Leaning Mode (FLM) , Layer 3 and Layer 2 based filtering, ACL flow based limiting, Management VLAN, Ingress storm protection, Authentication using LDAP, Transparent stateless firewall, Advanced threat detection – Using Tripwire Industrial Visibility (IDS)
MiscellaneousNTP Client and Server, DHCP L3 Relay
RoutingPort based routing, static routing, multinetting, IP masquerading, 1-to-1 NAT, port forwarding, Static and Dynamic ARP enteries, OSPFv2 , Layer 2 and Layer 3 VLAN routing
Ambient conditions
Operating temperature0-+60
Notecold start at -20 °C
Storage/transport temperature-40-+85 °C
Relative humidity (non-condensing)10-95 %
Mechanical construction
Dimensions (WxHxD)70 mm x 187.2 mm x 135.8 mm
Weight1960 g
Housing MaterialRugged high-strength sheet metal
MountingDIN rail
Protection classIP20
EMC emitted immunity
EN 55032EN 55032 Class A
FCC CFR47 Part 15FCC 47CFR Part 15, Class A
Approvals
Basis StandardCE, FCC, EN 61131
Reliability
Guarantee60 months (please refer to the terms of guarantee for detailed information)
Scope of delivery and accessories
Scope of delivery1 × Device, 2 × DIN Rail Kit, 1 × 6-pin terminal block for power supply, 1 × 2-pin terminal block for the digital input
Further Instructions
Product Documentationhttps://www.doc.hirschmann.com/index.html
Certificateshttps://www.doc.hirschmann.com/certificates.html
