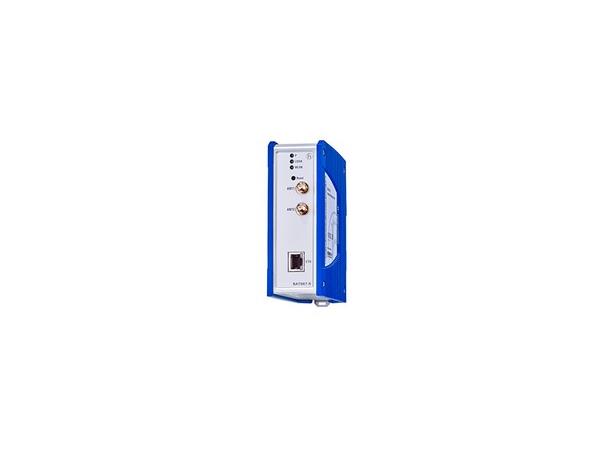

BAT867-R Wireless Client

BAT867-REUW99CU999AT199L999ZH

Varenr: BAT867-R-02
19438

Product description

DescriptionRugged wireless LAN access point and/or client with IEEE 802.11ac for use in industrial environments.
Port type and quantityInterface1: - Ethernet port 1 : RJ 45 (10/100/1000BASE-TX data rates)
Radio protocolIEEE 802.11a/b/g/n/ac WLAN interface as per IEEE 802.11ac, up to 867 Mbit/s gross bandwidth.
Additional radio features2x2 MIMO
TypeBAT867-REUW99CU999AT199L999ZH09.14.5500
Order No.942 183-999

More Interfaces

Power supply/signaling contact1 x plug-in terminal block, 2-pin

Radio technology

Antenna connector2 × RSMA
RangeDepending on antenna used, frequency range and data rate
Frequency bandSupporting 2.4 GHz and 5 GHz: 2412 to 2472 MHz and 5180 to 5825 MHz
ModulationOFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
EncryptionIEEE 802.11i / WPA2 with passphrase or 802.1x and hardware-accelerated AES, closed network, WEP64, WEP128, WEP152, user authentication, 802.1x /EAP, LEPS, WPA1/TKIP. Please refer to the HiLCOS data sheet for further information.

Power requirements

Operating voltageVoltage Range 1: 24 VDC (19.2-32 VDC)
Power consumptionMaximum power consumption : 9 W

Ambient conditions

Operating temperature-10 ºC ... 60 ºC
NoteTemperature of the surrounding air.
Storage/transport temperature-40 ºC ... 70 ºC
Relative humidity (non-condensing)10 % ... 95 %
MTBF (Telcordia)286.8 years; Telcordia SR-332; Gb 25ºC
Protective paint on PCBNo

Software

Software featuresHigh performance operating system for the Hirschmann BAT products. Supports all WLAN functions, routing, firewall, VLAN, and redundancy. IPv6 in preparation. All BAT867-R devices operate as either standalone access points or as managed access points in combination with a BAT WLC Controller. Please refer to the HiLCOS data sheet for further information.

Mechanical construction

Dimensions (W x H x D)50 mm x 147.5 mm x 122.5 mm
MountingDIN Rail
Protection classIP40

Approvals

Basis StandardCE, EN 61131
Safety of information technology equipmentEN 60950-1
RadioR & TTE - EN 300 328 (2.4 GHz) EN 301 893 (5 GHz) , EN 301 489-1, EN 301 489-17, EN 61000-6-2

Scope of delivery and accessories

Scope of deliveryDevice, Quick installation guide; 1 × premounted 2-pin terminal block for the supply voltage; 2 × Omnidirectional dual-band antennas for initial operation; 1 × 50-O terminator for equipping free antenna connections
Accessories to order separatelyExternal antennas; External surge protection; Cables 2m, 5m, 15m
