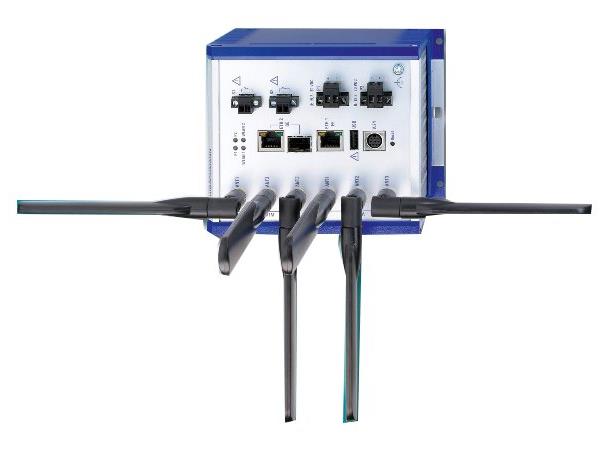

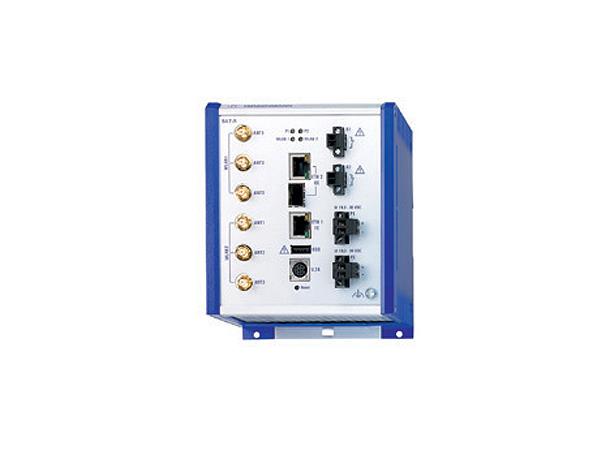

Hirschmann OpenBAT - WLAN - Wi-Fi

Modulært Industriell Trådløst Aksesspunkt/klient.

Rugged wireless LAN access point and/or client for use in industrial environments. Robust metal housing for mounting on DIN rails

Radio protocol

IEEE802.11a/b/g/h/n WLAN interface as per IEEE802.11n, up to 450MBit/s gross bandwidth.

Type

BAT-REUW99AWWG9BO7T1T999ZH

Order No.

BAT-REUW99AWWG9BO7T1T999ZH

Unterstützte Funkstandards

IEEE802.11a/b/g/h/n; 1st WLAN interface as per IEEE802.11n

Power supply/signaling contact

1 x terminal block, 2-pin; 1 x terminal block, 2-pin

USB interface

1 x USB to connect the AutoConfiguration Adapter ACA21-USB

Radio technology

Antenna connector

Reverse SMA socket, 3 x MiMo antenna connectors

Range

Depends on type of antenna, frequency range and data rate. Use the BAT-Planner for planning your wireless network.

Frequency band

Supports 2.4 GHz and 5 GHz: 2400 -2483.5 MHz (ISM) and 5170 -5850 MHz

Modulation

22M0F7D (DSSS/OFDM) at 2.4 GHz20M0G7D (OFDM) at 5 GHz

Encryption

IEEE 802.11i / WPA2 with passphrase or 802.1x and hardware-accelerated AES, closed network, WEP64, WEP128, WEP152, user

authentication, 802.1x /EAP, LEPS, WPA1/TKIP. Please refer to the HiLCOS data sheet for further information.

Power requirements

Operating voltage

Voltage Range 1: 24 VDC PoE; Voltage Range 2: 24 VDC PoE

Current consumption

9 W

Ambient conditions

Operating temperature

-40ºC ... +70 ºC

Relative humidity (non-condensing)

10 % ... 95 %

Mechanical construction

Dimensions (W x H x D)

120 mm x 136 mm x 115 mm

Mounting

DIN Rail

Approvals

ATEX ZONE 2
