BAT-REUW99ACC99AO799S999ZHXX.XX.XXXX

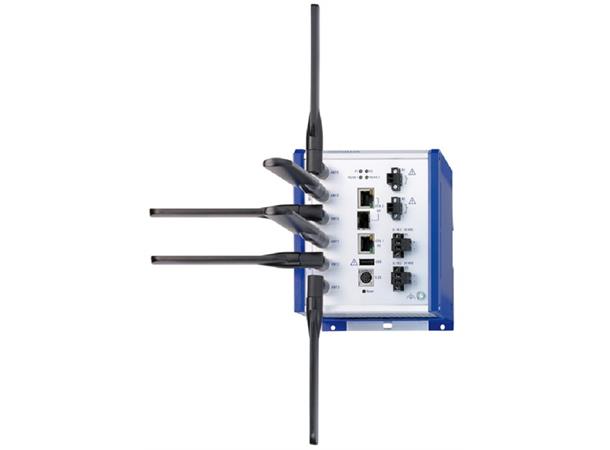

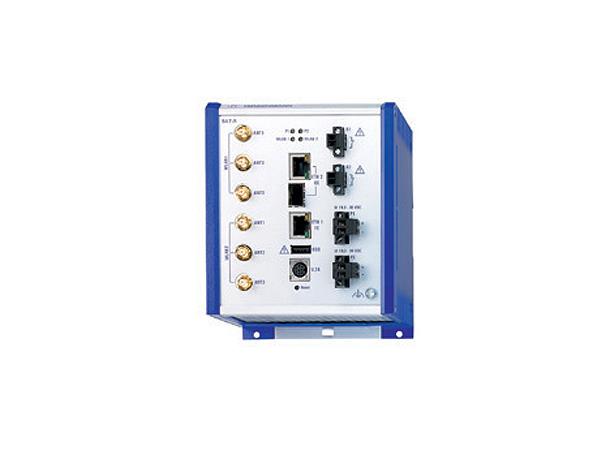

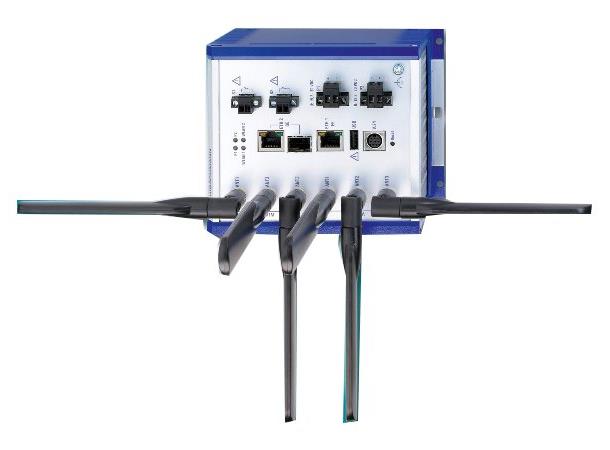

Design:                                    BAT-R        WLAN Access Point (Rail Variant) - DIN rail mountable
Country approval:                          EU           Europa (CE) - World software
Slot 1:                                    W            WLAN Module
Slot 2:                                    9            not mounted
Slot 3:                                    9            not mounted
Client /AP:                                A            Access Point
Voltage range 1:                           C            24 - 48 VDC
Voltage range 2:                           C            24 - 48 VDC
Approvals 1:                               9            no additional approvals
Approvals 2:                               9            no additional approvals
Installation:                              A            Operator Access Area Indoor



OPERATOR ACCESS AREA

Area for which one of the following conditions applies when operated as intended:



- accessible without TOOLS
- access options for the OPERATOR provided deliberately
- the OPERATOR is informed of access, regardless of which he need
Ports Ethernet 1:                          O7           Combo Gigabit Ethernet
Ports Ethernet 2:                          99           not assembled
Temperature range:                         S            0°C to +60°C
SW-Options 1:                              9            none
SW-Options 2:                              9            none
SW-Options 3:                              9            none
Configuration:                             Z            Starter Kit (Antenna, Connectors included)
Implementation:                            H            Standard Hirschmann
Software version:                          XX.XX.XXXX   Newest release
