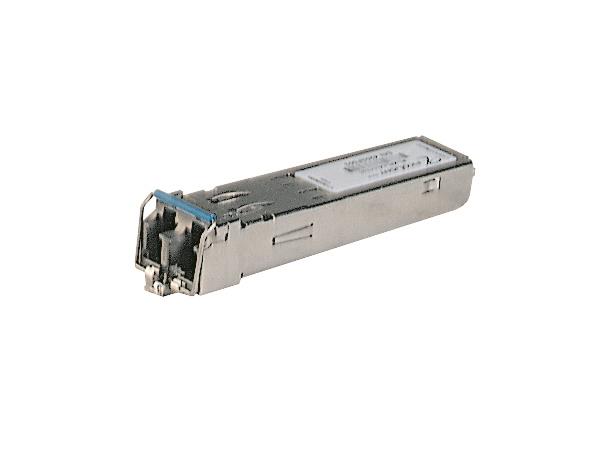

Hirschmann M-SFP-LH+/LC, 120km
Hirschmann M-SFP-LH+/LC, 120km
SFP Modul Gigabit, Singlemode LC
Varenr:
943 049-001
Forespørsel
Beskrivelse
Dokumentasjon
Product description
Type:
M-SFP-LH+/LC, SFP Transceiver LH+
Description:
SFP Fiberoptic Gigabit Ethernet Transceiver LH
Part Number:
943 049-001
Port type and quantity:
1 x 1000 Mbit/s with LC connector
Network size - length of cable
Single mode fiber (LH) 9/125 µm (long haul transceiver):
71 - 128 km (Link Budget at 1550 nm = 15 - 30 dB; A = 0,21 dB/km; D = 19 ps/(nm*km))
Power requirements
Operating Voltage:
power supply via the switch
Power consumption:
1 W
Software
Diagnostics:
Optical input and output power, transceiver temperature
Ambient conditions
MTBF (Telecordia SR-332 Issue 3) @ 25°C:
487 Years
Operating temperature:
0-+60 °C
Storage/transport temperature:
-40-+85 °C
Relative humidity (non-condensing):
5-95 %
Mechanical construction
Dimensions (WxHxD):
20 mm x 18 mm x 50 mm
Weight:
30 g
Mounting:
SFP slot
Protection class:
IP20
Mechanical stability
IEC 60068-2-6 vibration:
1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock:
15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD):
6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field:
10 V/m (80-1000 MHz)
EN 61000-4-4 fast transients (burst):
2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage:
power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 Conducted Immunity:
3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EMC emitted immunity
EN 55022:
EN 55022 Class A
FCC CFR47 Part 15:
FCC 47CFR Part 15, Class A
Approvals
Safety of information technology equipment:
EN60950
Hazardous locations:
depending on deployed switch
Shipbuilding:
depending on deployed switch
Scope of delivery and accessories
Scope of delivery:
SFP module
