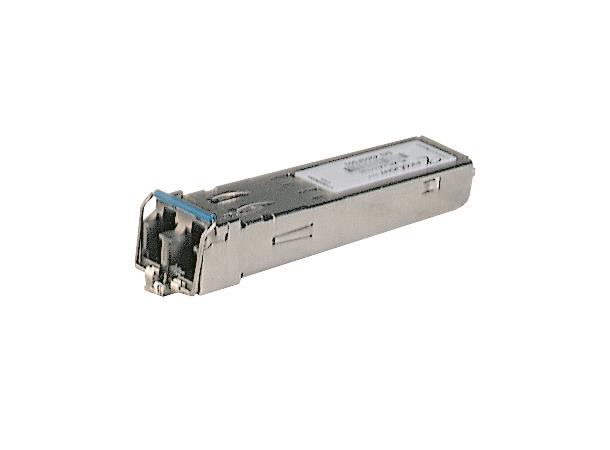

Hirschmann M-SFP-SX/LC, 550m
SFP Modul Gigabit, Multimode LC
Product description
Description
SFP Fiberoptic Gigabit Ethernet Transceiver with LC connector for all switches with Gigabit Ethernet SFP slot
Port type and quantity
1 x 1000BASE-SX with LC connector
Type
M-SFP-SX/LC
Order No.
943 014-001
Network size - length of cable
Multimode fiber (MM) 50/125 µm
0 - 550 m
0 - 7,5 dB link budget at 850 nm
A = 3 dB/km, 3 dB reserve, B = 400 MHz x km
Multimode fiber (MM) 62.5/125 µm
0 - 275 m
0 - 7,5 dB link budget at 850 nm
A = 3,2 dB/km, 3 dB reserve, B = 200 MHz x km
Power requirements
Operating voltage
power supply via the switch
Power consumption
1 W
Service
Diagnostics
optical input and output power, transceiver temperature
Ambient conditions
Operating temperature
0 ºC to +60 ºC
Storage/transport temperature
-40ºC to +85ºC
Relative humidity (non-condensing)
5% to 95%
Mechanical construction
Dimensions (W x H x D)
20 mm x 18 mm x 50 mm
Mounting
SFP slot
Weight
40 g
Protection class
IP 20
Mechanical stability
IEC 60068-2-27 shock
15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration
1 mm, 2 Hz - 13.2 Hz, 90 min.; 0.7g, 13.2 Hz - 100 Hz, 90 min.; 3.5 mm, 3 Hz - 9 Hz,
10 cycles, 1 octave/min.; 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)
6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field
10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst)
2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage
power line: 2 kV (line/earth), 1 kV (line/line), 1kV data line
EN 61000-4-6 conducted immunity
3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)
EMC emitted immunity
FCC CFR47 Part 15
FCC CFR47 Part 15 Class A
EN 55022
EN 55022 Class A
Approvals
Safety of information technology equipment
cUL 60950-1
Shipbuilding
Germanischer Lloyd, ABS, BV, DNV, LR, KR, RINA
Scope of delivery and accessories
Scope of delivery
SFP module
