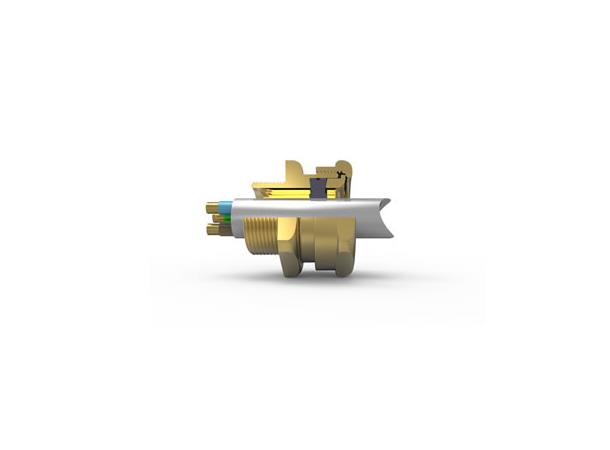

501/421 Cable Gland Brass

Varenr: 501/421

Product Details

General

ApplicationSuitable for use in Zone 1, Zone 2, Zone 21 and Zone 22
Ingress ProtectionIP66, IP67 and IP68 (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X
MaterialBrass, NP Brass or Stainless Steel
Operating Temperature-60°C to +100 °C
SeriesGroup II Cable Glands

Certifications and Compliance

ATEX File NumberCML 19ATEX1167XCML 19.0045X
CSA File NumberCSA1015065
Certification
  • EC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31
  • UL 60079-0, UL 60079-1, UL 60079-7, UL 2225
  • CSA 22.2 No: 60079-0, CSA 22.2 No: 60079-1, CSA 22.2 No: 6A0079-7, CSA 22.2 No: 60079-31
  • ISA 60079-31
Hazardous Rating(s)
  • Flameproof Ex db IIC Gb, Increased Safety Ex eb IIC Gb and Dust Extb IIIC Db Ex II 2GD
  • Flameproof AExd IIC Gb, Increased Safety AExe IIC Gb and Dust AExtD Zone 21
  • DTS01





CABLE GLAND SELECTION TABLE
Size
Ref.
Entry Thread
Size
Thread
Length
‘H’
Cable Acceptance Details ‘G’
Compressed
Length
Hexagon
Dimensions
Outer Sheath ‘B’
Metric NPT
*
Standard Seal Alternative
(S) Seal
Across
Flats
Across
Corners
Standard Option Min. Max. Min. Max.
2K M16 - - 15.0 3.2 8.0 - - 23.5 19.0 21.2
Os M20 ‡ ½" - 15.0 3.2 8.0 - - 23.8 24.0 26.5
O M20 ‡ ½" - 15.0 6.5 11.9 - - 23.8 24.0 26.5
A M20 ¾" ½" 15.0 10.0 14.3 9.0 13.4 24.8 30.0 32.5
B M25 1" ¾" 15.0 13.0 20.2 9.5 15.4 25.8 36.0 39.5
C M32 1¼" 1" 15.0 19.5 26.5 15.5 21.2 28.2 46.0 50.5
C2 M40 1½" 1¼" 15.0 25.0 32.5 22.0 28.0 29.5 55.0 60.6
D M50 2" 1½" 15.0 31.5 44.4/42.3 † 27.5 34.8 40.4 65.0 70.8
E M63 2½" 2" 15.0 42.5 56.3/54.3 † 39.0 46.5 38.2 80.0 88.0
F M75 3" 2½" 15.0 54.5 68.2/65.3 † 48.5 58.3 40.5 95.0 104.0
G M80 3½" - 20.0 67.0 73.0 - - 41.0 106.4 115.0
H M90 3½" - 20.0 67.0 77.6 - - 41.0 115.0 130.0
J M100 4" - 20.0 75.0 91.6 - - 41.0 127.0 142.0
All dimensions in millimetres (except * where dimensions are in inches).
2K - F size metric entry threads are 1.5mm pitch as standard. For G size Cable Glands and above, a 2mm pitch is supplied as standard (1.5mm pitch with 15mm length of thread can be supplied) please specify when ordering.
†Smaller value is applicable when selecting reduced NPT entry option.
‡ Sizes Os and O are available with an M16 thread size. For O size with M16 thread, the maximum cable outer sheath diameter is 10.9 mm

Produktinformasjon

501/421 Size 1/2" NPT (OS) (3.2 - 8.0)
501/421 Size 1/2" NPT (OS) (3.2-8.0)
501/421 Size 1" NPT (B) (13.0 - 20.2)
501/421 Size AS-M20 (8.5 - 13.5)
501/421 Size 3/4" NPT (B) (13.0 - 20.2)
501/421 Size BS-M25 (9.5 - 15.4)
501/421 Size 1" NPT CS (15.4-21.2)
501/421 Size 1/2" NPT (A) (10.0 - 14.3)
501/421 Size 1"NPT C (19.5-26.5)
501/421 Size DS-M50 (27.5 - 34.8)
501/421 Size 11/4" NPT (C2) (25.0-32.5)
501/421 Size FS-M75 (49.5 - 58.3)
501/421 Size ES-M63 (39 - 46.5)
501/421 Size 3/4" NPT (A) (10.0 - 14.3)
501/421 Size 1/2" NPT (O) (6.5 - 11.9)
501/421 Size C2S-M40 (22.0 - 28.0)
501/421 Size CS-M32 (15.5 - 21.2)
501/421 Size 2K-M16 (3.2 - 8.0)
501/421 Size OS-M20 (3.2 - 8.0)
501/421 Size O-M20 (6.5 - 11.9)
501/421 Size A-M20 (10.0 - 14.3)
501/421 Size B-M25 (13.0 - 20.2)
501/421 Size C-M32 (19.5 - 26.5)
501/421 Size C2-M40 (25.0 - 32.5)
501/421 Size D-M50 (31.5 - 44.4)
501/421 Size E-M63 (42.5 - 56.3)
501/421 Size F-M75 (54.5 - 68.2)
501/421 Size G-M80 (67.0 - 73.0)
Gruppe 1 Gland Hawke
Gruppe 2 Exd/e Through 501/421
Gruppe 3 Brass
Produsent Hawke International
