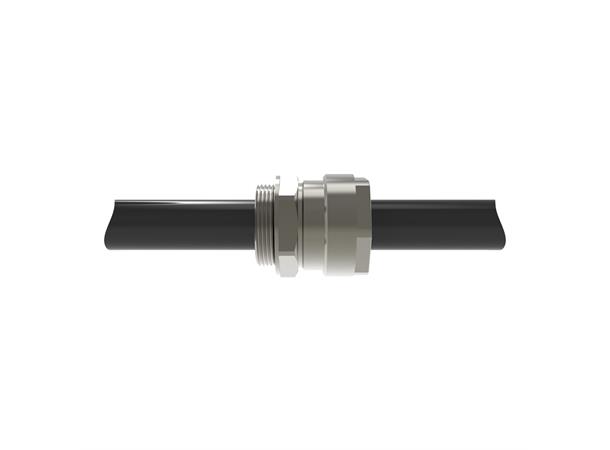

Hawke 501/321 OS-M16 Nick. Pl Exe (3.5-8.0) 9mm threads , c/w washer

Hawke 501/321 OS-M16 Nick. Pl

Exe (3.5-8.0) 9mm threads , c/w washer

Varenr: 501/321-OSM16NP
Alt. varenr: 1232914

The 501/321 cable gland supersedes our previously available 321 cable gland. A single seal compression gland provides a seal on the outer cable sheath and is intended for use on non-armoured elastomer and plastic insulated cables. If supplied with a GMC (Gland Mounted Clamp), you now have a solution that provides the additional cable support as referenced in BS EN 60079-14 10.3. The cable gland is Exe certified and is suitable for installation in Zone 1 (21) and Zone 2 (22) hazardous areas.

  • Provides a cable retention seal onto the cables outer sheath.
  • When used in Increased Safety applications, this cable gland may be used with braided/armoured cable where the braid/armour is suitably anchored within enclosure.
  • Supplied Nickel plated, as standard

Ordering Format [ Gland Type / Size / Male Thread / Options]; Example: 321/C/M32





ApplicationHazardous Location
Ingress ProtectionIP66 and IP68 (50m for 30mins) to EN60529
MaterialThe cable gland is supplied Brass Nickel Plated as standard
Operating Temperature Range Celcius-60c to +80c

Certifications and Compliance

ATEX File NumberCESI 19ATEx038X
Certification
  • EN 60079-0, EN 60079-7 and EN 60079-31
  • EX II 2GD Ex eb IIC Gb; Ex tb IIIC Db
  • Deluge Protection to DTS01
  • EAC: RU C-GB.HA91.B.00118/20
Hazardous Rating(s)Zone 1, Zone 2, Zone 22
IECEx File NumberCES 19.0014X
