Application
Outdoor or indoor use.
For use with non-armoured elastomer and plastic insulated cables.
Features
Provides a cable retention seal onto the cables outer sheath.
Materials & Finishes

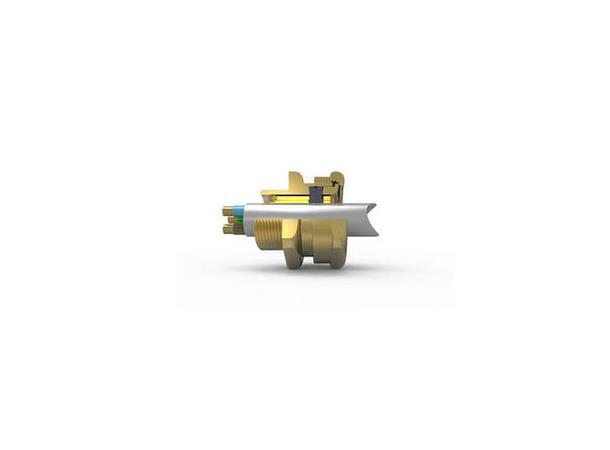

The 121 cable gland is manufactured in Brass (standard), Nickel Plated Brass, 316 Stainless Steel or Aluminium. Brass NPT entries are nickel plated as standard.
Technical Data
-
Construction and Test Standards:
EN 62444. BS 6121 Part 1. Type A2.
-
Ingress Protection:
IP66, IP67 and
IP 68
(30 metres for 7 days) to IEC/EN 60529.
-
Operating Temperature Range:
-60°C to +100°C
-
Deluge Protection to:
DTS01
-
Assembly Instruction Sheet:
AI 392.
| CABLE GLAND SELECTION TABLE |
Size
Ref. |
Entry Thread
Size |
Cable Acceptance Details |
‘G’
Compressed
Length |
Hexagon
Dimensions |
| Metric |
NPT* |
Outer Sheat'B' |
Across
Flats |
Across
Corners |
| Standard |
Option |
Standard Seal |
Alternative Seal (S) |
| Min. |
Max. |
Min. |
Max. |
| 2K |
M16 |
- |
- |
3.0 |
8.0 |
- |
- |
23.5 |
19.0 |
21.2 |
| Os |
M20² |
½" |
- |
3.0 |
8.0 |
- |
- |
23.8 |
24.0 |
26.5 |
| O |
M20² |
½" |
- |
7.5 |
11.9 |
- |
- |
23.8 |
24.0 |
26.5 |
| A |
M20 |
¾" |
½" |
11.0 |
14.3 |
8.5 |
13.4 |
24.8 |
30.0 |
32.5 |
| B |
M25 |
1" |
¾" |
13.0 |
20.2 |
9.5 |
15.4 |
25.8 |
36.0 |
39.5 |
| C |
M32 |
1¼" |
1" |
19.0 |
26.5 |
15.5 |
21.2 |
28.2 |
46.0 |
50.5 |
| C2 |
M40 |
1½" |
1¼" |
25.0 |
32.5 |
22.0 |
28.0 |
29.5 |
55.0 |
60.6 |
| D |
M50 |
2" |
1½" |
31.5 |
44.4/42.3¹ |
27.5 |
34.8 |
40.4 |
65.0 |
70.8 |
| E |
M63 |
2½" |
2" |
42.5 |
56.3/54.3¹ |
39.0 |
46.5 |
38.2 |
80.0 |
88.0 |
| F |
M75 |
3" |
2½" |
54.5 |
68.2/65.3¹ |
48.5 |
58.3 |
40.5 |
95.0 |
104.0 |
| G |
M80 |
3½" |
- |
67.0 |
73.0 |
- |
- |
41.0 |
106.4 |
115.0 |
| H |
M190 |
3½" |
- |
67.0 |
77.6 |
- |
- |
41.0 |
115.0 |
130.0 |
| J |
M100 |
4" |
- |
75.0 |
91.6 |
- |
- |
41.0 |
127.0 |
142.0 |
All dimensions in millimetres (except * where dimensions are in inches). 2K - F size metric entry threads are 1.5mm pitch as standard, 15mm length of thread.
For G size glands and above, a 2mm pitch is supplied as standard, 20mm length of thread (1.5mm pitch with 15mm length of thread can be supplied) please
specify when ordering
¹ Smaller value is applicable when selecting reduced NPT entry option.
² Sizes Os and O are available with an M16 thread size. For O size with M16 thread, the maximum cable outer sheath diameter is 10.9mm
|
