AimTTi PSA3605USC

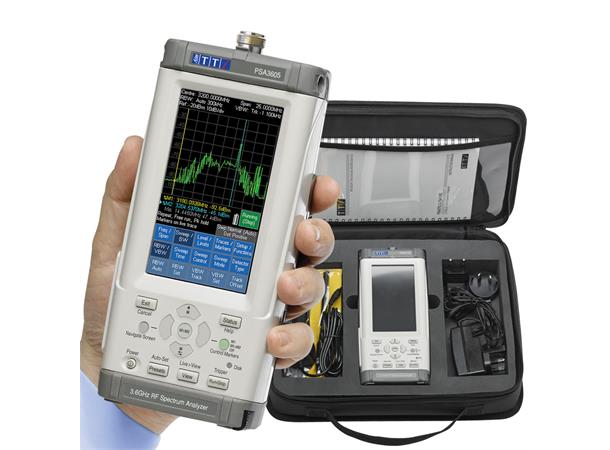

Handheld 3.6GHz Spectrum Analyser + Kit

Varenr: PSA3605USC
34 780,00

Highly capable handheld RF spectrum analyzers with bandwidths up to 6.0GHz.

The AimTTi PSA Series 5 - Handheld RF Spectrum Analyzer with 10MHz to 3.6 or 6.0GHz bandwidth options

True hand-held battery powered RF spectrum analyzers.

  • 10MHz to 3600MHz or 6000MHz frequency range
  • Resolution bandwidths from 300Hz to 10MHz (1:3:10)
  • -120dBm typical noise floor at -40dBm ref. level/10kHz RBW
  • Measurement in dBm or dBµV, mV or µW
  • Zero span mode with AM and FM audio demodulation
  • Trace modes of normal, peak hold and trace average
  • Live, View and Reference traces in contrasting colours
  • Twin markers with readout of absolute & difference values
  • Smart marker movement with selectable peak tracking
  • Frequency counter with down to 10Hz resolution
  • Frequency presets and independent state storage
  • Auto-find automatically sets sweep parameters for the highest signal found
  • Unlimited storage for waveforms, set-ups and screens
  • User assignable file names, file stamping from real-time clock
  • USB interfaces for Flash drives and PC connection
  • Comprehensive status and context sensitive help screens
  • Rechargeable lithium ion battery giving more than 3 hours continuous operation from a charge
  • Smaller and lighter than other spectrum analyzers (weight only 0.56 kg)

Additional features - with option U02:

  • High Resolution Scan Mode - up to 210,000 points with pan and zoom
  • Limit lines and limit patterns with limits comparator
  • Data logging of peak values, complete traces or screen images from timer, external trigger or limits comparator
  • Automatic Measurements for CP, ACPR and OBW
  • Waveform demodulation for AM and FM signals
  • Sweep triggering from external trigger or limits comparator
  • Compensation tables, fixed offsets and 75R compensation
  • Custom Presets - fast change for repetitive setups
  • Capability to show screen contents on a PC
