Highly capable handheld RF spectrum analyzers with bandwidths up to 6.0GHz.

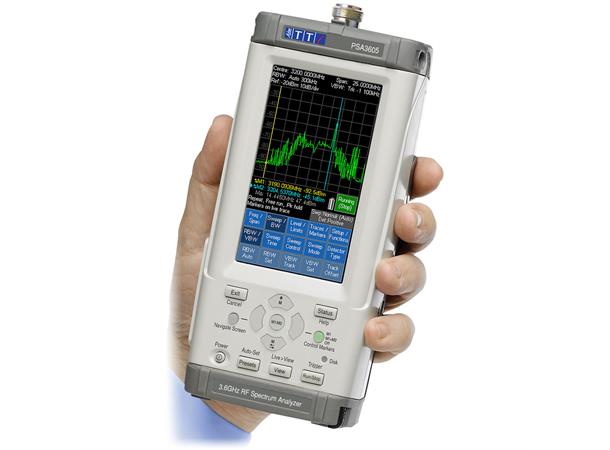

The AimTTi PSA Series 5 - Handheld RF Spectrum Analyzer with 10MHz to 3.6 or 6.0GHz bandwidth options

True hand-held battery powered RF spectrum analyzers.

• 10MHz to 3600MHz or 6000MHz frequency range
• Resolution bandwidths from 300Hz to 10MHz (1:3:10)
• -120dBm typical noise floor at -40dBm ref. level/10kHz RBW
• Measurement in dBm or dBµV, mV or µW
• Zero span mode with AM and FM audio demodulation
• Trace modes of normal, peak hold and trace average
• Live, View and Reference traces in contrasting colours
• Twin markers with readout of absolute & difference values
• Smart marker movement with selectable peak tracking
• Frequency counter with down to 10Hz resolution
• Frequency presets and independent state storage
• Auto-find automatically sets sweep parameters for the highest signal found
• Unlimited storage for waveforms, set-ups and screens
• User assignable file names, file stamping from real-time clock
• USB interfaces for Flash drives and PC connection
• Comprehensive status and context sensitive help screens
• Rechargeable lithium ion battery giving more than 3 hours continuous operation from a charge
• Smaller and lighter than other spectrum analyzers (weight only 0.56 kg)
