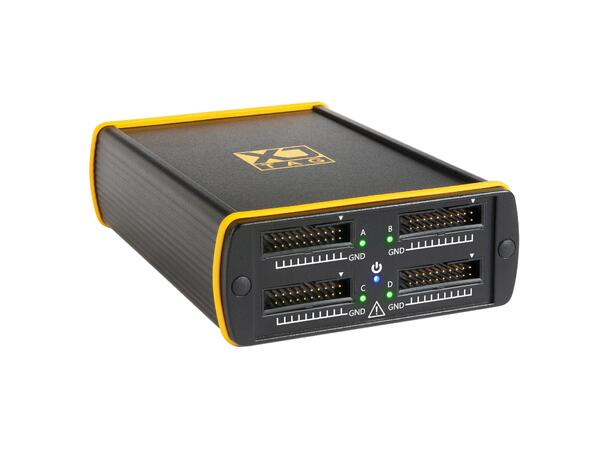

The XJLink-PF40 is a portable and robust USB-C to JTAG controler that provides a high-speed JTAG interface to your device under test. The four ports provide 40 I/O pins and allow you to run eight separate JTAG chains at different frequencies. The compact design means the XJLink-PF40 can easily be moved to the Unit Under Test (UUT), while a number of advanced features make it easy to connect to a wide range of circuit boards.

Key Benefits

• Compact, portable design: ideal for lab and field work
• Electrically and physicaly robust
• 8 JTAG TAPs with configurable frequency per TAP
• Self-contained licence alowing you to use the XJTAG system on multiple machines
• Unit can be used for many different models of UUT, a lowing for cost savings

Features

• 40 user-definable I/O connections can be used for:
  - Up to 8 TAP connections to UUT
  - General purpose I/O during testing
  - Fast Flash Programming
  - Triggering a test
  - Outputting test status
• Configurable JTAG connector pin-out to suit any UUT
• Four different individua ly programmable I/O voltages can be configured, from 1.2 V to 3.3 V in 0.1 V steps
• Protection against voltage input from -30 to +30 V
• Visual indication of test status
• USB bus-powered (no external PSU)
• USB 2.0 interface with screw locking type C Connector
• Automatic signal skew Control
• Built in voltmeter on a l I/O pins Measurable voltage input: Min 0, Max 3.3 V
• TCK clock frequencies up to 166 MHz Different frequencies for different Chains
• Frequency counter on al I/O pins Frequency input: Min 1 Hz, Max 200 MHz Selectable measurement period of 1 ms, 10 ms, 100 ms, 1 s, 10 s
• Robust aluminium casing
• Easy mounting options
