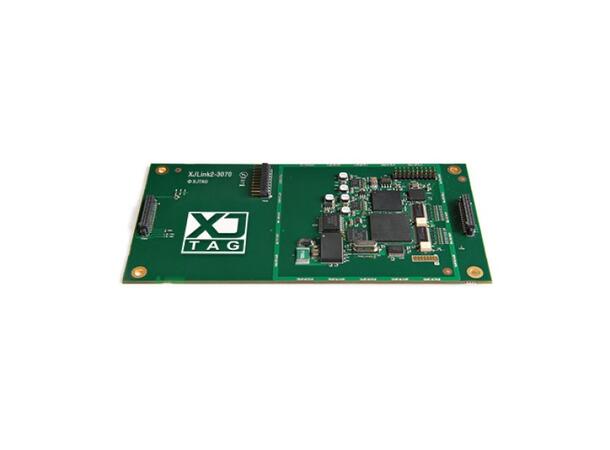

XJLink2-3070, approved by Keysight Technologies, is an XJLink2-based JTAG controller that provides convenient, integrated access to XJTAG’s powerful boundary scan test and programming tools from Keysight (Agilent) i3070 ICT machines.
Features
- Fully integrated into the BTBasic environment
- Fully compatible with all XJLink2 projects
- High-speed programming
- Up to 4 JTAG chain connections to UUT
- TCK clock frequencies up to 166 MHz
- Two different interface voltages can be configured, from 1.1 V to 3.3 V
- Adjustable signal slew rate and drive strength
- Automatic signal skew control
- Frequency counter on all I/O pins – Frequency input up to 200 MHz
- Fits into one slot on the Keysight (Agilent) i3070 utility card
- Optionally fit multiple XJLink2-3070s per utility card
