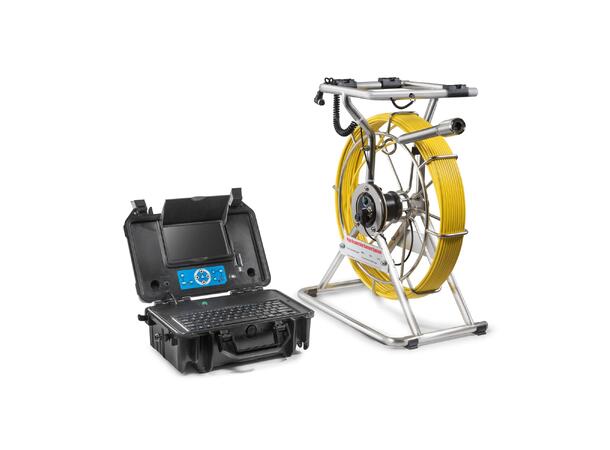

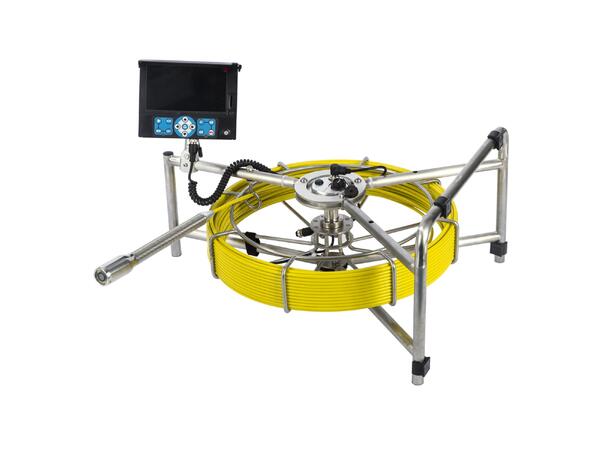

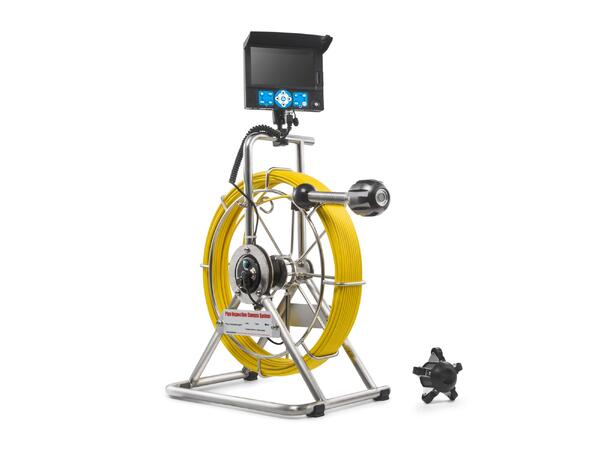

3399F/3399FB is a Drain/Pipe Inspection Camera that comes with self-leveling feature 38mm camera head, a removeable 7inch LCD monitor with DVR, a 40-60m fiberglass push cable reel, all parts (including camera head, monitor, cable etc) are mounted on a robust stainless steel wheel.
This system is widely used in inspections of Sewer, central air conditioning, chimney, plumbing, building, cable pipe and pipes ventilation systems and other places.

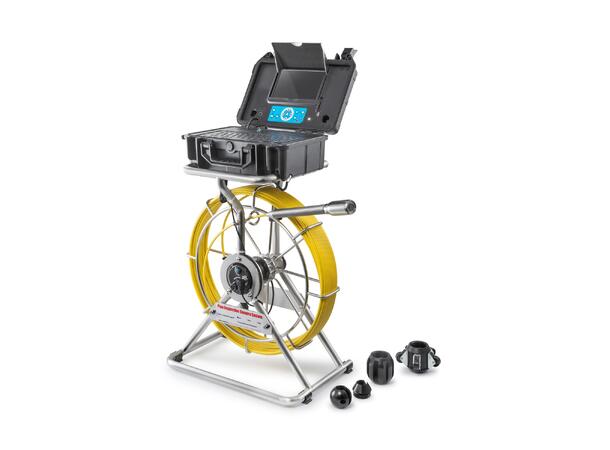

3399FB has the 7" monitor, battery and keyboard mounted inside a rain resistant box.
Key features:
- 1/3" CMOS, 120°wide vision angle, 480 TV Lines
- Camera Size: F38mm×81mm(main body)
- Two roller skids, mini one at dia.72mm, another universal skid at dia.115-250mm
- Sapphire glass lens cover, 12 white LEDs
- Diameter of camera:38mm, Focus Distance 12cm (approx)
- Water proof level, 20m underwater (camera fix on cable)
- Push cable dia. 6.8mm
- 7” LCD color monitor
- SD Card slot to store still pictures or videos
- One push record button LED brightness control buttons
- Video image rotate button
- With microphone for audio recording
- Built-in rechargeable battery lasts up to 5 hours
- On-Screen date and time
- With self-leveling feature
- On-screen meter/ft. distance display
- 40-60m fiberglass push rod
- With universal installation brackets
Optional Features:
- With built-in 512Hz sonde
- With 33Khz transmitter
What's included:
- 1 x 38mm Camera head
- 1 x 40-60m(130-200ft) cable wheel
- 1 x 7" monitor with Built-in Li-battery
- 1 x 72 Roller Skid (for pipe diameter 4"-5")
- 1 x 120 universal Skid (for pipe diameter 5 "- 12")
- 1 x remote control
- 1 x screw driver
- 1 x power adapter
- 1 x car charger
- 1 x universal monitor bracket
- 1 x U-Shape wheel extension handle
- 1 x tool bag
- 1 x hex Wrench
- 1 x double box wrench
