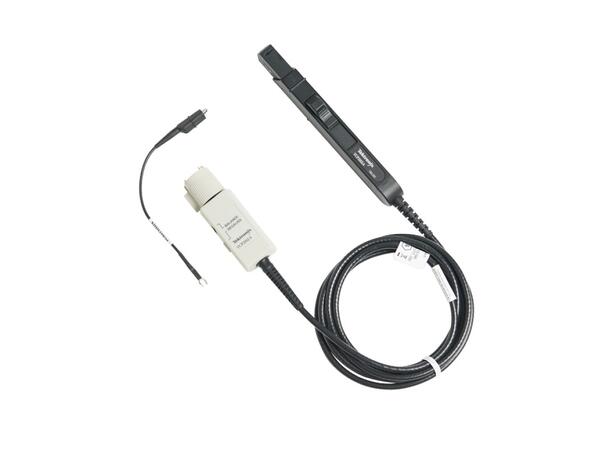

Tektronix TCP0020 AC/DC Current probe
- 20 ARMS maximum current capability
- 100 A peak pulse current capability
- Connects directly to oscilloscopes with the TekVPI™ probe interface
- Provides automatic units scaling and readout on the oscilloscope display
- One-button degauss and AutoZero control for ease of use
- Easy access to scope-displayed probe menu for probe setup control and operating status information
- Remote control capability through TekVPI oscilloscope
The TCP0020 and TCP2020 are two high-performance, easy-to-use AC/DC current probes designed for use with a variety of oscilloscopes. The TCP0020 is designed for direct connection to oscilloscopes with the TekVPI™ probe interface. The TCP2020 is designed for use with any instrument with BNC inputs and >100 kOhm input termination.
These AC/DC current probes provide sufficient performance to support 50 MHz measurement system bandwidth. The TCP0020 and TCP2020 provide a maximum 20 ARMS measurement range. These probes also provide excellent accuracy to current levels as low as 10 mA, important for meeting today’s challenging current measurement needs.
