Key performance specifications

• Input channels
• 8 FlexChannel® inputs
  - Each FlexChannel provides:
  - One analog signal that can be displayed as a waveform view, a spectral view, or both simultaneously
  - Eight digital logic inputs with TLP058 logic probe
• Bandwidth (all analog channels)
  - 1 GHz, 500 MHz (upgradable)
• Sample rate (all analog / digital channels)
  - Real-time: 6.25 GS/s
  - Interpolated: 500 GS/s
• Record length (all analog / digital channels)
  - 125 Mpoints (std.)
  - 250, 500 Mpoints (optional)
• Waveform capture rate
  - >500,000 waveforms/s
• Vertical resolution
  - 12-bit ADC
  - Up to 16-bits in High Res mode
  - 7,6 ENOB at 1 GHz
• Standard trigger types
  - Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video (optional), RF vs. Time (optional)
  - Auxiliary Trigger =5 VRMS, 50O, 200 MHz (Edge Trigger only)
• Standard analysis
  - Measurements: 36
  - Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains RF vs. time traces (magnitude, frequency, phase)
  - FastFrame™: Segmented memory acquisition mode with maximum trigger rate >5,000,000 waveforms per second
  - Plots: Time Trend, Histogram, Spectrum and Phase NoiseMath: Basic waveform arithmetic, FFT, and advanced equation editor
  - Search: Search on any trigger criteria
  - Jitter: TIE and Phase Noise
• Optional analysis (optional and upgradable)
  Advanced Jitter and Eye Diagram Analysis
  User-defined filtering
  Advanced Spectrum View
  RF vs. Time traces, triggers, Spectrograms, and IQ capture
  Digital Power Management
  Mask/Limit Testing
  Inverters, Motors, and Drives
  Advanced Power Measurements and Analysis
• Optional protocol trigger, decode, and analysis (optional and upgradable)
  I2C, SPI, eSPI, I3C, RS-232/422/485/UART, SPMI, SMBus, CAN, CAN FD, CAN XL, LIN, FlexRay, SENT, PSI5, CXPI, Automotive Ethernet,MIPI C-PHY,MIPI D-PHY, USB 2.0, eUSB2.0, Ethernet, EtherCAT, Audio, MIL-STD-1553, ARINC 429, Spacewire, 8B/10B,NRZ, Manchester, SVID, SDLC, 1-Wire, MDIO, and NFC
• Arbitrary/Function Generator (optional and upgradable)
  - 50 MHz waveform generation
  -Waveform Types: Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random Noise, Haversine, Cardiac
• Digital voltmeter (free with product registration)
  - 4-digit AC RMS, DC, and DC+AC RMS voltage measurements
• Trigger frequency counter (free with product registration)
  - 8-digit
• Video display output
  - High Definition (1,920 x 1,080) resolution video output
  Connectivity
  USB Host (6 ports), USB 3.0 Device (1 port), LAN (10/100/1000 Base-T Ethernet), Display Port, DVI-D, VGA
• e*Scope®
  - Remotely view and control the oscilloscope over a network connection through a standard web browser
• Operating system
  - Closed Embed
• Dimensions

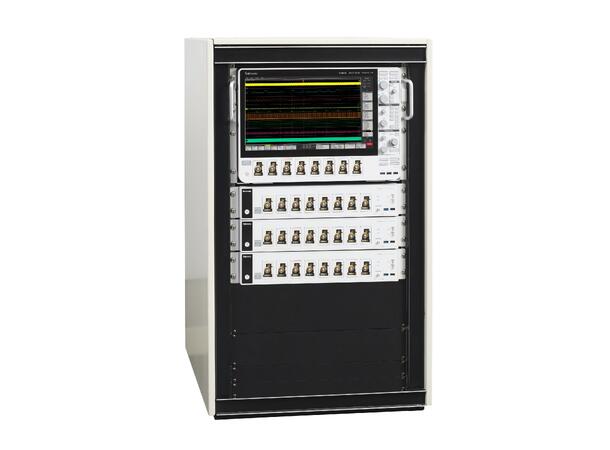

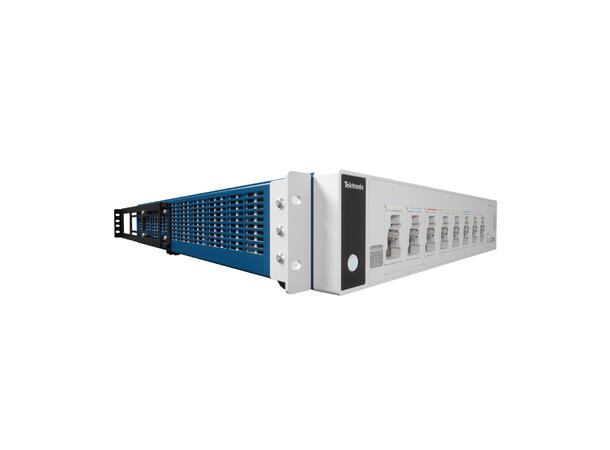

  - 2U Rack Mount Kit included
  - 3.44 in (87.3 mm) H x 17.01 in (432 mm) W x 24.74 in (621.5 mm) D
  - Weight: 28 lbs. (12.7 kg)

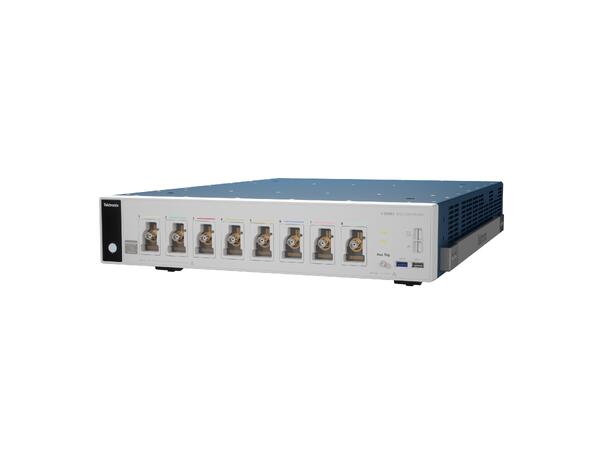

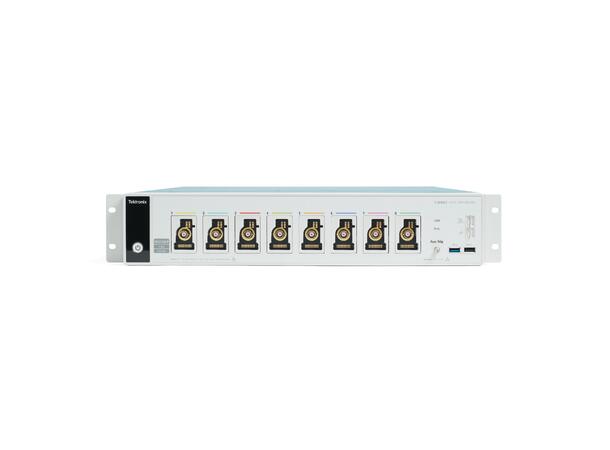

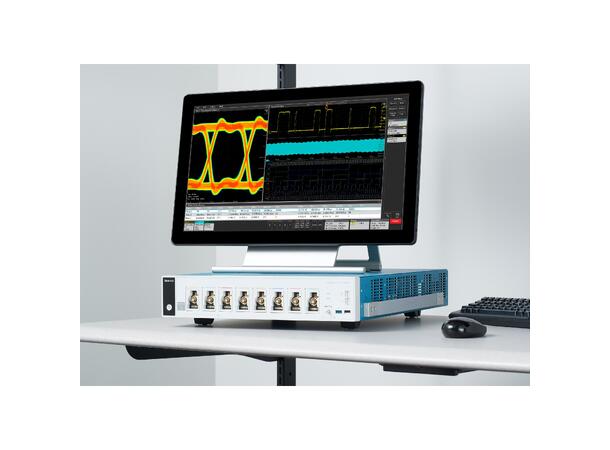

With a remarkable 8 input channels in a 2U high package and a 12-bit ADC, the 5 Series MSO Low Profile sets a new standard for performance in applications where extreme analog, spectrum, or digital channel density is required.
