Demopris med 39 % rabatt kr. 145.000,- eks. mva.

Ordinær pris kr. 237.800,- eks. mva.

Demoenhet spesifikasjoner:

• Analog Bandwidth: 500 MHz (license upgradeable to 1.5 GHz)
• Analog Channels: 4
• Sample Rate: 6.25 GS/s
• Digital Channels: Up to 32 (optional with TLP058 probe)
• Record Length: 31.25 M (optional to 62.5 M)

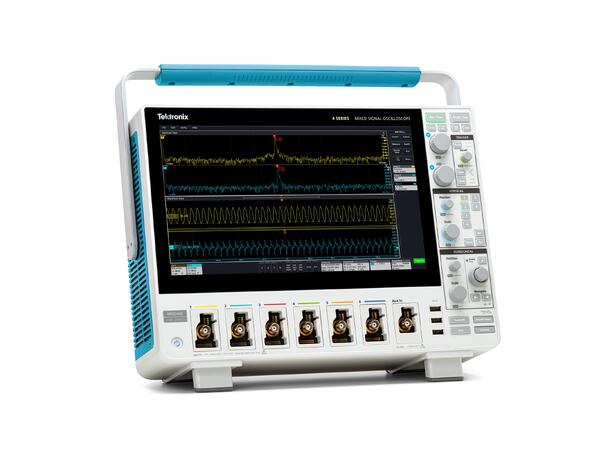

• Spectrum Analyzer: Spectrum View up to instrument bandwidth on all channels
• Utvidet garanti til 16/11-2027

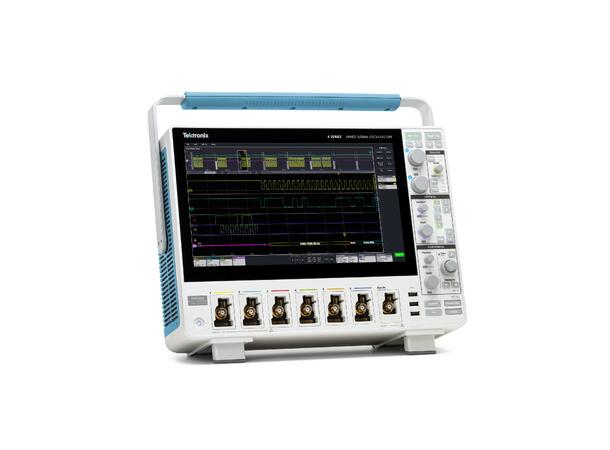

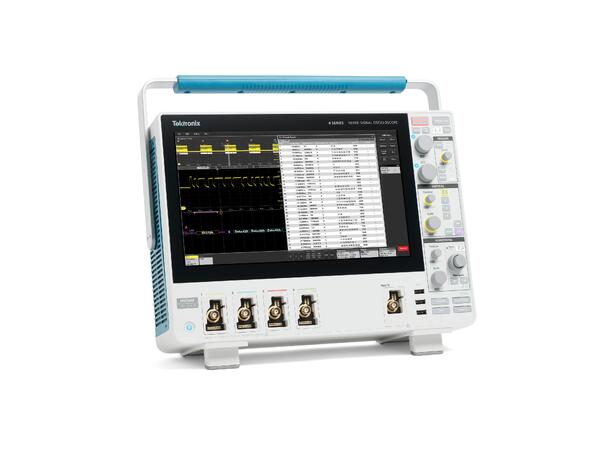

  Tektronix MSO4B Serie

  • A new processor system for
  •     - 2X more responsive user interface
  •     - Faster analysis
  •     - Faster data transfers
  • New display technology for greater contrast and wider viewing angle
  • New annotations indicate key reference levels and times for measurements

  The 4 Series B MSO combines performance and analysis capabilities to address the vast majority of engineering challenges with an industry-leading intuitive user interface. The “B” version features a significantly faster processor system that speeds analysis and makes controls 2X more responsive. The 4 Series offers 4 or 6 analog channels with 12-bit ADCs, 200 MHz to 1.5 GHz bandwidth and up to 6.25 GS/s sample rate with record lengths of 31.25 or 62.5 Mpoints. In addition to analog waveform measurements, each channel can be used for spectrum analysis or equipped with an 8-channel logic probe. It is available with a built-in function generator, support for over 25 serial protocols and power analysis packages, making it ideal for embedded system design, power supply design, and three-phase power electronics.

  • Product Series: 4 Series B MSO
  • Analog Channels: 4 or 6
  • Bandwidth: 500 MHz, upgradeable to 1 GHz or 1.5 GHz
  • Sampling Rate: 6.25 GS/s on all channels
  • Record Length: 31.25 Mpoints per channel, 62.5 Mpoints optional
  • Display Type:  13.3-inch TFT color • full HD (1920 x 1080) resolution • capacitive (multi-touch) touchscreen
  • Resolution: 12-bit; up to 16-bit in Hi Res mode

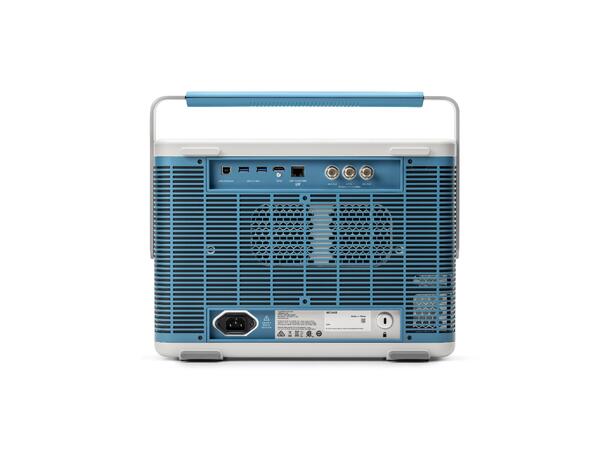

  • Ports:  3 x USB2 and 2 x USB3 Host, 1 USB Device, 1 Ethernet
  • Standard Warranty: 1 year

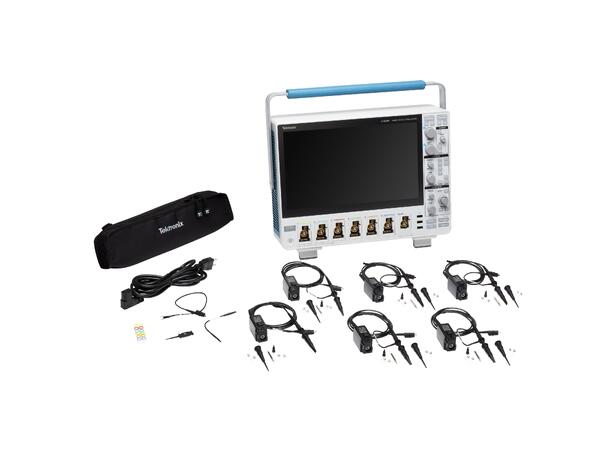

  Ships with:

  • One passive analog probe per channel: TPP0500B 500 MHz bandwidth probes with 3,9pF load
  • Installation and safety manual (translated in English, Japanese, and Simplified Chinese)
  • Embedded help
  • Power cord
  • Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration
  • One-year warranty covering all parts and labor cost on the instrument and the included probes
