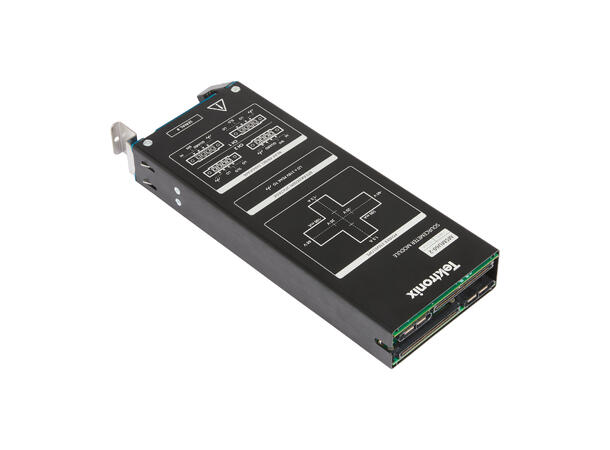

MSMU60-2 (SMU) Module
30 W, 60 V, 1.5 A, 2 channels
Specifications:
Source Measure Unit (SMU) Modules:
Configurations:
- 2 Ch, 30W, 60V, 1.5A
- 2 Ch, 30W, 200V, 1.5A (with extended range pulse)
- Measurement Resolution: Down to femtoampere (fA) level
- Digitizer: 1 MSa/s ADC for voltage and current
Features:
- Four-quadrant operation
- Asymmetric compliance (independent positive/negative limits)
- Enhanced remote sensing with autosense resistors
- Contact check and transient protection
- High capacitive load capability
TSP Toolkit:
- Visual Studio Code-based IDE
- On-instrument script debugging
- Automated TSP script generation with channel sync
- Instrument simulation and waveform preview
- Python API integration
- Data export (.csv, .xlsx)
Recommended accessories (see datasheet for full list):
SMU Module (MSMU60-2):
Cable Type, Part number Description
MSMU-TRX-HI, CA-701-1A 1 m, Dual Triax to Terminal Header
MSMU-TRX-HI, CA-701-3A 3 m, Dual Triax to Terminal Header
MSMU-TRX-SLO, CA-702-1A 1 m, Single Triax SLO/LO to Terminal Header
MSMU-TRX-SLO, CA-702-3A 3 m, Single Triax SLO/LO to Terminal Header
MSMU-TRX-LO, CA-703-1A 1 m, Single Triax LO to Terminal Header
MSMU-TRX-LO, CA-703-3A 3 m, Single Triax LO to Terminal Header
MSMU-TRX-SLO-CG, CA-705-1A 1 m, Single Triax SLO/LO to Terminal Header, LO shorted to ground
MSMU-TRX-SLO-CG, CA-705-3A 3 m, Single Triax SLO/LO to Terminal Header, LO shorted to ground
MSMU-TRX-LO-CG, CA-707-1A 1 m, Single Triax LO to Terminal Header, LO shorted to ground
MSMU-TRX-LO-CG, CA-707-3A 3 m, Single Triax LO to Terminal Header, LO shorted to ground
Ships With:
Included with SMU Modules (e.g., MSMU60-2):
- 4x CONNECTORs,4 POSITION MALE CONNECTOR, SCREW TERMINAL BLOCK
Software & Drivers:- TSP Toolkit (Base Version) – Visual Studio Code-based IDE
- Python & IVI Drivers
- Utilize TSP commands
- Access to Online Documentation and Example Scripts
