Tektronix MP5000 Modular Precision Test System
The MP5000 Series is a high-density, modular test platform designed for automated validation and production environments. With up to 6 SMU/PSU channels in a 1U chassis, native Python drivers, and the intuitive TSP Toolkit IDE, it delivers unmatched flexibility, performance, and automation for semiconductor, optoelectronics and mission-critical applications.
Applications
- Semiconductor validation and reliability testing
- Optoelectronics (VCSEL, LED, laser diode characterization)
- Aerospace and defense system functional testing
- High-density production test environments
Specifications
Advanced Automation & Software
-Visual Studio Code-based IDE
-On-instrument script debugging
-Automated TSP script generation with channel sync
- Driver Support: Python & IVI
- Web Interface: Browser-based control and monitoring
-Connectivity & Integration:
- TSP-Link: Synchronize up to 32 mainframes
- 18 Digital I/O pins for hardware handshaking
- USB 3.0 and 1 Gigabit Ethernet for fast data streaming
Ships with
Included with Mainframe (MP5103):

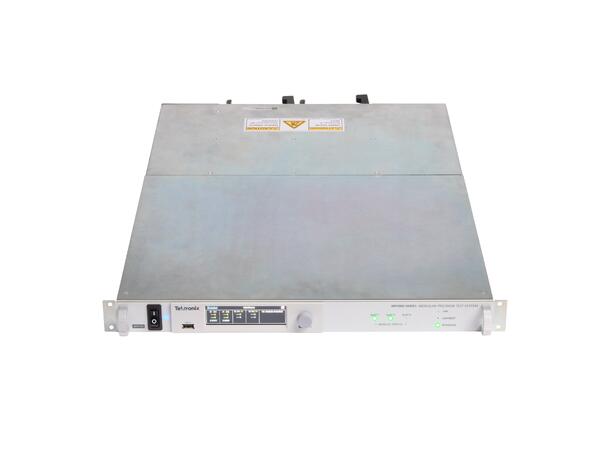

- MP5103 1U Modular Mainframe
- Fixed 1U Rack Mount Kit (Part #: 4299-15)
- Digital I/O Terminal Block (Part #: 174745100)
- Interlock Connector (Part #: 133062300)
- Power Cord (region-specific)
- Quick Start Guide / Safety Manual
- Web Interface Access Instructions
Software & Drivers:
- TSP Toolkit (Base Version) – Visual Studio Code-based IDE
- Python & IVI Drivers
- Utilize TSP commands
- Access to Online Documentation and Example Scripts
