Demopris med 43 % rabatt kr. 135.000,- eks. mva.

Ordinær pris kr. 237.800,- eks. mva.

Demoenhet spesifikasjoner:

• Analog Bandwidth: 500 MHz (license upgradeable to 1.5 GHz)
• Analog Channels: 4
• Sample Rate: 6.25 GS/s
• Digital Channels: Up to 32 (optional with TLP058 probe)
• Record Length: 31.25 M (optional to 62.5 M)
• Spectrum Analyzer: Spectrum View up to instrument bandwidth on all channels
• 12 måneder garanti

• Alt tilbehør er komplett og instrumentet fremstår som nytt

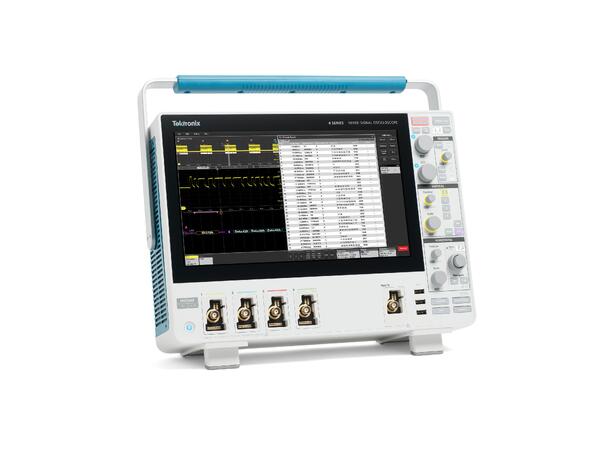

The 4 Series B MSO combines performance and analysis capabilities to address the vast majority of engineering challenges with an industry-leading intuitive user interface. The “B” version features a significantly faster processor system that speeds analysis and makes controls 2X more responsive. The 4 Series offers 4 or 6 analog channels with 12-bit ADCs, 200 MHz to 1.5 GHz bandwidth and up to 6.25 GS/s sample rate with record lengths of 31.25 or 62.5 Mpoints. In addition to analog waveform measurements, each channel can be used for spectrum analysis or equipped with an 8-channel logic probe. It is available with a built-in function generator, support for over 25 serial protocols and power analysis packages, making it ideal for embedded system design, power supply design, and three-phase power electronics.

• Product Series: 4 Series B MSO
• Analog Channels: 4 or 6
• Bandwidth: 500 MHz, upgradeable to 1 GHz or 1.5 GHz
• Sampling Rate: 6.25 GS/s on all channels
• Record Length: 31.25 Mpoints per channel, 62.5 Mpoints optional
• Display Type:  13.3-inch TFT color • full HD (1920 x 1080) resolution • capacitive (multi-touch) touchscreen
• Resolution: 12-bit; up to 16-bit in Hi Res mode
• Ports:  3 x USB2 and 2 x USB3 Host, 1 USB Device, 1 Ethernet
• Standard Warranty: 1 year


Ships with:

• One passive analog probe per channel: TPP0500B 500 MHz bandwidth probes with 3,9pF load
• Installation and safety manual (translated in English, Japanese, and Simplified Chinese)
• Embedded help
• Power cord
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration
• One-year warranty covering all parts and labor cost on the instrument and the included probes
