RSM-Ex® 01 Speaker Microphone

Zone 1/21

Varunummer: 480984

Description

The RSM-Ex 01 comes with an IP65/67 rating and a built-in noise reduction function. It is able to produce clear, high-volume audio (up to 103 dB). The RSM is intuitive and easy to use, even when wearing gloves.

The new 3.5 mm plug is intended for industrial applications and offers a rugged design, a safety screw for attaching the plug to a smartphone, and compatibility with current and future ecom products.

Additional headsets can be connected using the standard 3.5 mm plug



Key Features:

  • Wired connection or wireless (Bluetooth® version planned)
  • Outstanding volume and sound performance – Up to 103 dB
  • Extremely long operating times with high voice volume – Up to 78 hours
  • Good operability, even with gloves



Technical Data
Loudspeaker performanceUp to 103 dB
Power supplyLi-Ion 2200 mAh
ChargingCharging cable and docking station with magnetic charging plug
A docking station without any electronics and a mounting option for the charging plug.
Optical charging level indication (multiple LEDs)
Plug3.5 mm 4-pin headset jack with locking mechanism for Smart-Ex® 01 /201 and Ex-Handy 09 / 209 versions
3.5 mm 4-pin headset jack with locking mechanism for ecom next-generation phones (Smart-Ex® 02)
3.5 mm 4-pin headset jack for standard Android and Windows devices
ButtonsPTT button operable with thick gloves
Front-facing multi-function button
Volume up / down
SOS button (optional)
FeaturesLone worker ready (optional SOS button)
IOT ready (4 standard Google intents usable and/or optional 4 additional Android Intents)
Build in NFC Technology
Temperature rangeTa = -20…+55°C
IP ratingIP 64 following EN/IEC 60079-0 (ATEX/ IECEx)
IP 65 / 67 following EN/IEC 60529 (industrial standard)

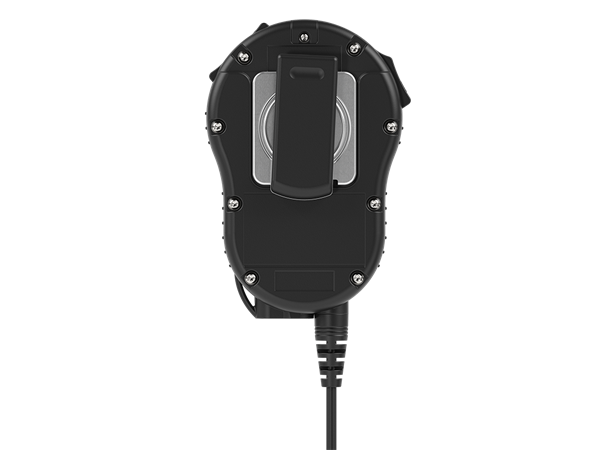

AccessoriesRemovable belt clip
Charging cable
Docking station (optional)
Connection of additional headsets (optional)



Ex Certification

ATEX

II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db IP64
I M2 Ex ib I Mb
