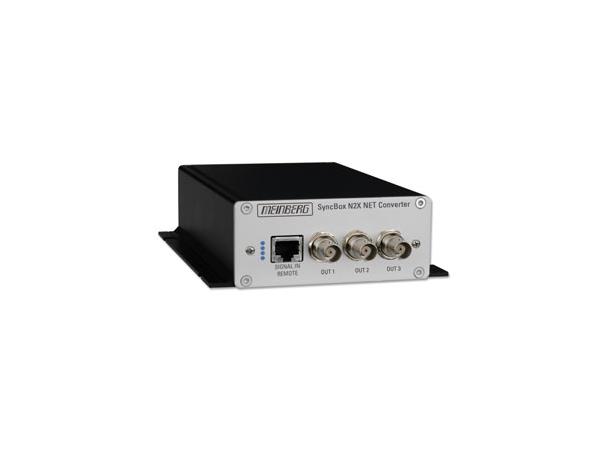

Meinberg SyncBox/N2X/TC/PP-2P PoE, 2xBNC-TTL, 1xBNC-AM, RS232

Meinberg SyncBox/N2X/TC/PP-2P

PoE, 2xBNC-TTL, 1xBNC-AM, RS232

Varunummer: SyncBox/N2X/TC/PP-2P

The SyncBox/N2X operates as a IEEE-1588 multicast slave clock or NTP client in a PTP / NTP network and with its interfaces this converter can synchronize many different systems. Our IEEE-1588 Grandmaster or LANTIME NTP Server, such the LANTIME M600, can be used as a reliable time source.


•The following output signals are available:
PPO (PPS, PPM, PPH, TC DCLS, DCF77 Marks)
10 MHZ
TC AM
Frequenz Synth. sine
serial time string (Meinberg, Uni Erlangen, NMEA)IEEE 1588-2008 (PTP V2) compatible ordinary clock
•Serial COM port for initial configuration and time telegrams
•Supported Protocols: IPv4, NTP, PTP / IEEE 1588-2008, DHCP
•Signal outputs with fiber optical ST connectors available
•Generates several different modulated (AM) and unmodulated (DCLS) IRIG time code signals
•10/100Base-T Ethernet interface - Power over Ethernet option available on request
•Configuration and montoring with MBGMON



SyncBox/N2X/TC/PP-2P

PTP/NTP Client with Timecode/Pulse/Frequency outputs for network-based synchronization of devices that require RS232 timestrings, 1PPS or 1PPM pulses, IRIG timecodes or frequencies.

1 x LAN interface 10/100 MBit, RJ45 connector
----------------------------------------------------------------------------------------------
Signal Outputs:
1 x RS232 interface, independent, 9pin D-Sub female connector,
      with multi data formats timestrings.
2 x Pulse/synthesizer for frequencies from 0,1Hz up to 10MHz,
       Programmable Pulses outputs (e.g. PPS; PPM; PPH...),
      or Time Code DCLS, Pulse-width modulated output (IRIG/AFNOR/IEEE1344),
      TTL into 50 Ohm, female BNC connector

1 x Time Code AM, amplitude modulated sinewave output (IRIG/AFNOR/IEEE1344) ,
      3Vpp into 50 ohm,  via female BNC connector
----------------------------------------------------------------------------------------------
Technical specifications:
Power supply: 19-72V DC
Power consumption: max. 2W
Built-up in an aluminium housing
(105mm  x 44mm  x 165mm / width x height x depth)
----------------------------------------------------------------------------------------------
